SD4117P
Code: SD4117P
Category: Starter drives
Manufacturer: Magneti Marelli
Supplier: As-pl
PREMIUM LINE

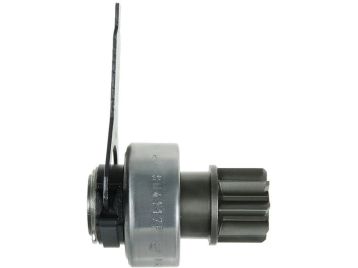

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 65.50 mm
L.2: 32.80 mm
Teeth: 8
Splines: 9
O.d.1: 46.50 mm
O.d.2: 28.00 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| SD4117P | As-pl | |
| UD17847SD | As-pl | |
| 136261 | Cargo | |
| DRV4156 | Electrolog | |
| 225502 | Era | |
| 1931 | Ghibaudi | |
| SDL6261 | Krauf | |
| CQ2010198 | Lauber | |
| 54293451 | Lucas | |
| TMB197 | Lucas | |
| 23312-93J00 | Nissan | |
| 1012215 | Powermax | |
| 21-019 | Stemot | |
| SDV31044 | Woodauto | |
| 1.01.1062.0 | Zen | |
| 1062 | Zen | |
| ZN1062 | Zen |
Usage
| Brand | Model | Type | Year | Note |
| MAGNETI MARELLI | 63226834 | starter motors | ||
| MAGNETI MARELLI | 63226845 | starter motors | ||
| MAGNETI MARELLI | 63226846 | starter motors |
