SD5058


Code: SD5058

Category: Starter drives

Manufacturer: MITSUBISHI

Supplier: As-pl

STANDARD LINE

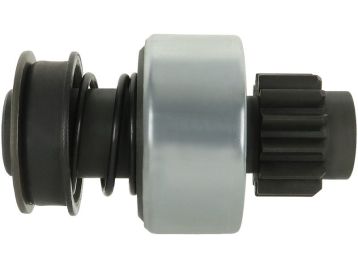

Brand new AS-PL Starter motor drive



I.d.1: 17.20 mm

L.1: 109.00 mm

L.2: 25.00 mm

Teeth: 13

Splines: 10

O.d.1: 64.00 mm

O.d.2: 40.00 mm

Rotation: CW



Reference number

CodeManufacturer
139609Cargo
CQ2010087Cq
DRV5165Electrolog
225284Era
E8PZ11350A Ford
SDE339 Ford
SDF9645Krauf
SDF9645HSKrauf
SDF9645PNKrauf
M191T66271 MITSUBISHI
M191X66271MITSUBISHI
1014379Powermax
3-777Wai / Transpo
54-8320Wai / Transpo
54-8320-5Wai / Transpo
SDV38632Woodauto
1.01.0669.0Zen


Usage

BrandModelTypeYearNote
FORDE8PZ11350Astarter motors
FORDSDE339starter motors
MITSUBISHIM191T66271starter motors
MITSUBISHIM3T90072starter motors
