SD9065


Code: SD9065

Category: Starter drives

Manufacturer: Ford

Supplier: As-pl

STANDARD LINE

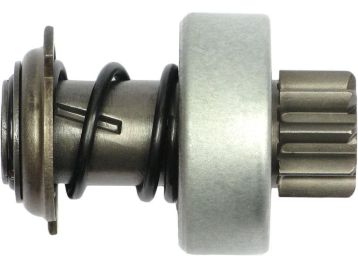

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 70.00 mm

L.2: 17.40 mm

Teeth: 9

Splines: 3

O.d.1: 48.00 mm

O.d.2: 36.00 mm

Rotation: CW



Reference number

CodeManufacturer
132751Cargo
CQ2010535Cq
DRV8016Electrolog
E2BZ11350AFord
E2PZ11350AFord
SD320Ford
6227 Ghibaudi
1017504Powermax
54-202Wai / Transpo
54-202-5Wai / Transpo
54-202-9Wai / Transpo
SDV32470Woodauto


Usage

BrandModelTypeYearNote
FORDE25F11001AAstarter motors
FORDE25Y11002Astarter motors
FORDE25Z11002Astarter motors
FORDE2BF11001AAstarter motors
FORDE2BZ11002Astarter motors
FORDE37F11001AAstarter motors
FORDE3AF11001AAstarter motors
FORDE3AZ11002Astarter motors
FORDE3TF11001AAstarter motors
FORDE3TZ11002Astarter motors
FORDE3TZ11002Dstarter motors
FORDE47F11001BAstarter motors
FORDE4AF11001AAstarter motors
FORDE4DF11001AAstarter motors
FORDE4DF11001BAstarter motors
FORDE4DZ11002Bstarter motors
FORDE4SF11001AAstarter motors
FORDE4TF11001AAstarter motors
FORDE4TZ11002Astarter motors
FORDE4TZ11002Bstarter motors
FORDE6DZ11002Cstarter motors
FORDE7DF11001AAstarter motors
FORDE7ZF11001AAstarter motors
FORDE7ZZ11002Astarter motors
FORDE8DF11001AAstarter motors
FORDE8DZ11002Astarter motors
