  5. SD9071



SD9071


Code: SD9071

Category: Starter drives

Manufacturer: Iskra / Letrika

Supplier: As-pl

PREMIUM LINE

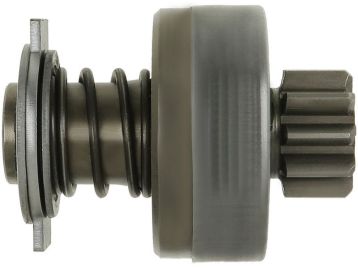

Brand new AS-PL Starter motor drive



I.d.1: 14.30 mm

L.1: 82.00 mm

L.2: 20.60 mm

Teeth: 10

Splines: 10

O.d.1: 61.50 mm

O.d.2: 31.70 mm

Rotation: CW



Reference number

CodeManufacturer
DRV7917Electrolog
16.902.381Iskra / Letrika
16.902.792Iskra / Letrika
16.908.807Iskra / Letrika
MSX 286Mahle
MSX 332KITMahle
MSX 743Mahle
01-036Stemot


Usage

BrandModelTypeYearNote
Iskra / Letrika11130748starter motors
Iskra / Letrika11130793starter motors
Iskra / Letrika11131167starter motors
Iskra / Letrika11131274starter motors
Iskra / Letrika11131318starter motors
Iskra / Letrika11131359starter motors
Iskra / Letrika11131374starter motors
Iskra / Letrika11131376starter motors
Iskra / Letrika11131855starter motors
Iskra / Letrika11131883starter motors
Iskra / Letrika11131929starter motors
Iskra / Letrika11132062starter motors
Iskra / LetrikaAZF4227starter motors
Iskra / LetrikaAZF4240starter motors
Iskra / LetrikaAZF4253starter motors
Iskra / LetrikaAZF4284starter motors
Iskra / LetrikaAZF4510starter motors
Iskra / LetrikaAZF45182starter motors
Iskra / LetrikaAZF4521starter motors
Iskra / LetrikaAZF4559starter motors
Iskra / LetrikaAZF4596starter motors
