SD9161P


Code: SD9161P

Category: Starter drives

Manufacturer: MAHLE/ISKRA/LETRIKA

Supplier: As-pl

PREMIUM LINE

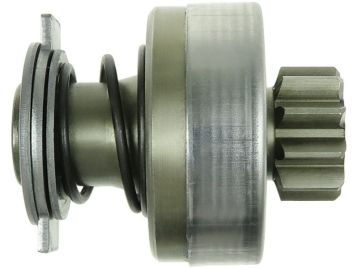

Brand new AS-PL Starter motor drive



I.d.1: 14.30 mm

L.1: 75.70 mm

L.2: 19.20 mm

Teeth: 10

Splines: 14

O.d.1: 61.50 mm

O.d.2: 31.70 mm

Rotation: CW



Reference number

CodeManufacturer
UD15287SDAs-pl
333683Cargo
DRV7936Electrolog
DRV7936iElectrolog
225736Era
16.902.653Iskra / Letrika
SDI0191Krauf
MSX149MAHLE/ISKRA/LETRIKA
1018201Powermax
81018201Powermax
01-053Stemot
MAHMSX149Woodauto
SDV38323Woodauto
1.01.1709.0Zen
1709Zen
ZN1709Zen


Usage

BrandModelTypeYearNote
Iskra / Letrika11131751starter motors
Iskra / Letrika11131833starter motors
Iskra / Letrika11132084starter motors
Iskra / Letrika11132227starter motors
Iskra / LetrikaAZE4169starter motors
Iskra / LetrikaAZE4185starter motors
Iskra / LetrikaAZE4228starter motors
Iskra / LetrikaAZE4261starter motors
