SRS3089S

Code: SRS3089S

Category: Starter repair kits

Manufacturer: Valeo

Supplier: As-pl

STANDARD LINE

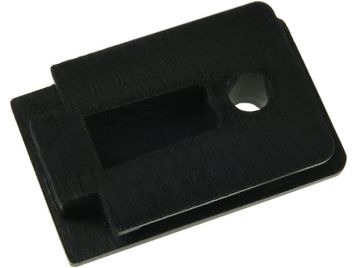

Brand new AS-PL Starter motor insulator for brush holder

H.1: 31.50 mm

I.d.1: 4.50 mm

T.1: 8.00 mm

W.1: 19.70

Reference number

Code	Manufacturer
UD46614SRS	As-pl
236456	Cargo
INSS1004	Electrolog

Usage

Brand	Model	Type	Year	Note
As-pl	MC01097	starter motors
As-pl	S3019	starter motors
As-pl	S3020	starter motors
As-pl	SBH3003	starter brush holders
As-pl	SBH3021	starter brush holders
As-pl	SBH3026	starter brush holders
VALEO	D7E30	starter motors
VALEO	D7E47	starter motors
VALEO	D7E7	starter motors
VALEO	D7E8	starter motors
