  5. SS9024



SS9024


Code: SS9024

Category: Starter solenoids

Manufacturer: Magneton

Supplier: As-pl

STANDARD LINE

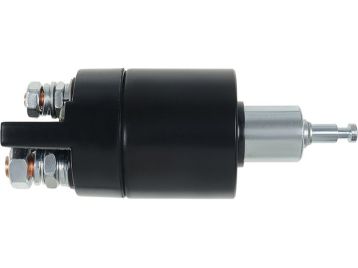

Brand new AS-PL Starter motor solenoid



B+: M10x1.5

Coil bolt: M8x1.25

I.d.1: 24.00 mm

L.1: 67.30 mm

L.b+: 26.10

L.coil bolt: 18.00

O.d.1: 54.40 mm

O.d.2: 53.80 mm

Voltage: 24 v



Reference number

CodeManufacturer
SOLX091Electrolog
SSG2780Krauf
7154720Magneton
7154722Magneton
9-172-780-800Magneton


Usage

BrandModelTypeYearNote
As-plS9041starter motors
MAGNETON9172780starter motors
