A1067S
Code: A1067S
Category: Alternators
Manufacturer: DELCO
Supplier: As-pl
: 8600628
STANDARD LINE

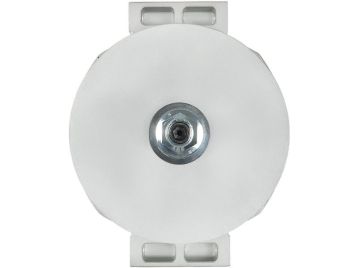

Brand new AS-PL Alternator
Size c: 127.00 mm
Amp.: 320 A
D.1: 10.50
D.2: 10.50
D.3: 12.50
D.4: 12.50
E.1: 80.00 mm
E.2: 80.00 mm
Pulley: n/a
L.1: 281.00 mm
Plug: PL_9111
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD18507A | As-pl | |
| 8600628 | DELCO | |
| 101-40124 | Dixie | |
| A-1858 | Dixie | |
| ALP4962 | Krauf | |
| A0014962PA | Prestolite | |
| A0014962PAH | Prestolite | |
| A0014962PGH | Prestolite | |
| BLP4002H | Prestolite | |
| BLP4004H | Prestolite | |
| 240-40110 | Robert's | |
| 21080399 | Volvo | |
| 90-01-4748 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| Blue Bird | All American FE 6.7 | [ISB] | 01.2008-12.2017 | |
| Blue Bird | All American FE 7.2 | [C7] | 01.2008-12.2009 | |
| Blue Bird | All American RE 6.7 | [ISB] | 01.2008-12.2017 | |
| Blue Bird | All American RE 8.3 | [ISC] | 01.2008-12.2014 | |
| Blue Bird | All American RE 8.9 | [ISL] | 01.2014-12.2017 | |
| Blue Bird | SHL All American 6.7 | [ISB] | 01.2017-12.2017 | |
| Blue Bird | Vision 6.7 | [ISB] | 01.2008-12.2017 | |
| Blue Bird | Vision 7.2 | [C7] | 01.2008-12.2010 | |
| CATERPILLAR | CT660 10.5 | [CT11] | 01.2015-12.2017 | |
| CATERPILLAR | CT660 12.4 | [CT13] | 01.2015-12.2017 | |
| CATERPILLAR | CT660 15.2 | [CT15] | 01.2015-12.2017 | |
| FREIGHTLINER | 108SD 12.8 | [DD13] | 01.2012-12.2016 | |
| FREIGHTLINER | 108SD 15.0 | [ISX15] | 01.2013-12.2016 | |
| FREIGHTLINER | 108SD 6.7 | [B6.7] | 01.2017-12.2018 | |
| FREIGHTLINER | 108SD 6.7 | [ISB] | 01.2012-12.2016 | |
| FREIGHTLINER | 108SD 8.3 | [ISC] | 01.2012-12.2016 | |
| FREIGHTLINER | 108SD 8.9 | [ISL] | 01.2012-12.2016 | |
| FREIGHTLINER | 114SD 12.8 | [DD13] | 01.2012-12.2016 | |
| FREIGHTLINER | 114SD 15.0 | [ISX15] | 01.2013-12.2016 | |
| FREIGHTLINER | 114SD 6.7 | [ISB] | 01.2012-12.2016 | |
| FREIGHTLINER | 114SD 8.3 | [ISC] | 01.2012-12.2016 | |
| FREIGHTLINER | 114SD 8.9 | [ISL-G] | 01.2012-12.2016 | |
| FREIGHTLINER | 114SD 8.9 | [ISL] | 01.2012-12.2016 | |
| FREIGHTLINER | 122SD 12.8 | [DD13] | 01.2012-12.2016 | |
| FREIGHTLINER | 122SD 14.8 | [DD15] | 01.2012-12.2016 | |
| FREIGHTLINER | 122SD 15.0 | [ISX15] | 01.2012-12.2016 | |
| FREIGHTLINER | 122SD 15.6 | [DD16] | 01.2012-12.2016 | |
| FREIGHTLINER | Business Class M2 100 12.8 | [DD13] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 100 15.0 | [ISX15] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 100 4.3 | [MBE904] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 100 6.4 | [MBE906] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 100 6.7 | [ISB] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 100 7.2 | [MBE926] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 100 8.3 | [ISC] | 01.2008-12.2012 | |
| FREIGHTLINER | Business Class M2 100 8.9 | [ISL] | 01.2013-12.2016 | |
| FREIGHTLINER | Business Class M2 106 11.1 | [C11] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 106 12.8 | [DD13] | 01.2009-12.2016 | |
| FREIGHTLINER | Business Class M2 106 12.8 | [MBE4000] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 106 15.0 | [ISX15] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 106 4.3 | [MBE904] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 106 6.4 | [MBE906] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 106 6.7 | [B6.7] | 01.2017-12.2018 | |
| FREIGHTLINER | Business Class M2 106 6.7 | [ISB] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 106 7.2 | [C7] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 106 7.2 | [MBE926] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 106 8.3 | [ISC] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 106 8.8 | [C9] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 106 8.9 | [ISL] | 01.2010-12.2017 | |
| FREIGHTLINER | Business Class M2 106 9.0 | [L9] | 01.2017-12.2018 | |
| FREIGHTLINER | Business Class M2 112 11.1 | [C11] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 112 12.8 | [DD13] | 01.2009-12.2017 | |
| FREIGHTLINER | Business Class M2 112 12.8 | [MBE4000] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 112 14.8 | [DD15] | 01.2008-12.2017 | |
| FREIGHTLINER | Business Class M2 112 15.0 | [ISX15] | 01.2009-12.2015 | |
| FREIGHTLINER | Business Class M2 112 15.6 | [DD16] | 01.2010-12.2017 | |
| FREIGHTLINER | Business Class M2 112 4.3 | [MBE904] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 6.4 | [MBE906] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 6.7 | [B6.7] | 01.2017-12.2018 | |
| FREIGHTLINER | Business Class M2 112 6.7 | [ISB] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 112 7.2 | [C7] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 7.2 | [MBE926] | 01.2008-12.2009 | |
| FREIGHTLINER | Business Class M2 112 8.3 | [ISC] | 01.2008-12.2016 | |
| FREIGHTLINER | Business Class M2 112 8.8 | [C9] | 01.2008-12.2010 | |
| FREIGHTLINER | Business Class M2 112 8.9 | [ISL] | 01.2010-12.2017 | |
| FREIGHTLINER | Cascadia 11.9 | [ISX12] | 01.2012-12.2017 | |
| FREIGHTLINER | Cascadia 12.8 | [DD13] | 01.2009-12.2017 | |
| FREIGHTLINER | Cascadia 12.8 | [MBE4000] | 01.2008-12.2014 | |
| FREIGHTLINER | Cascadia 14.8 | [DD15] | 01.2008-12.2017 | |
| FREIGHTLINER | Cascadia 15.0 | [ISX15] | 01.2009-12.2017 | |
| FREIGHTLINER | Cascadia 15.2 | [C15] | 01.2008-12.2010 | |
| FREIGHTLINER | Cascadia 15.6 | [DD16] | 01.2010-12.2016 | |
| FREIGHTLINER | Chassis B2 Chassis 6.7 | [ISB] | 01.2013-12.2016 | |
| FREIGHTLINER | Chassis MB-65 Chassis 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | Chassis S2 Chassis 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | Chassis S2 Chassis 7.2 | [MBE926] | 01.2015-12.2016 | |
| FREIGHTLINER | Chassis S2C Chassis 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | Chassis S2RV Chassis 6.7 | [ISB] | 01.2015-12.2016 | |
| FREIGHTLINER | Chassis S2RV Chassis 6.7 | [ISB] | 01.2017-12.2017 | |
| FREIGHTLINER | Coronado 12.8 | [DD13] | 01.2010-12.2017 | |
| FREIGHTLINER | Coronado 12.8 | [SDDD13] | 01.2010-12.2016 | |
| FREIGHTLINER | Coronado 14.8 | [DD15] | 01.2010-12.2017 | |
| FREIGHTLINER | Coronado 14.8 | [SDDD15] | 01.2013-12.2014 | |
| FREIGHTLINER | Coronado 15.0 | [ISX15] | 01.2011-12.2017 | |
| FREIGHTLINER | Coronado 15.0 | [SDISX15] | 01.2013-12.2014 | |
| FREIGHTLINER | Coronado 15.6 | [DD16] | 01.2011-12.2017 | |
| FREIGHTLINER | Coronado 15.6 | [SDDD16] | 01.2013-12.2014 | |
| International | Durastar 12.4 | [MaxxForce13] | 01.2008-12.2014 | |
| International | Durastar 6.4 | [MaxxForce7] | 01.2008-12.2015 | |
| International | Durastar 7.6 | [MaxxForceDT] | 01.2008-12.2015 | |
| International | Durastar 9.3 | [MaxxForce10] | 01.2008-12.2015 | |
| International | Durastar 9.3 | [MaxxForce9] | 01.2008-12.2015 | |
| International | Durastar 9.3 | [N9] | 01.2015-12.2018 | |
| International | HV 6.7 | [B6.7] | 01.2018-12.2019 | |
| International | HV 9.0 | [L9] | 01.2018-12.2019 | |
| International | HX 14.9 | [X15] | 01.2017-12.2019 | |
| International | Lonestar 12.4 | [MaxxForce13] | 01.2012-12.2014 | |
| International | Lonestar 12.4 | [N13] | 01.2015-12.2015 | |
| International | Lonestar 15.0 | [ISX15] | 01.2016-12.2017 | |
| International | Lonestar 15.2 | [MaxxForce15] | 01.2011-12.2014 | |
| International | MV 6.7 | [B6.7] | 01.2018-12.2019 | |
| International | MV 9.0 | [L9] | 01.2018-12.2019 | |
| International | MXT 6.4 | [MaxxForce7] | 01.2008-12.2009 | |
| International | Paystar 12.4 | [MaxxForce13] | 01.2013-12.2014 | |
| International | Paystar 12.4 | [N13] | 01.2015-12.2015 | |
| International | Paystar 15.0 | [ISX15] | 01.2008-12.2015 | |
| International | Paystar 15.2 | [MaxxForce15] | 01.2011-12.2014 | |
| International | Prostar 10.5 | [MaxxForce11] | 01.2014-12.2014 | |
| International | Prostar 12.4 | [MaxxForce13] | 01.2008-12.2015 | |
| International | Prostar 12.4 | [N13] | 01.2014-12.2016 | |
| International | Prostar 15.0 | [ISX15] | 01.2014-12.2017 | |
| International | Prostar 15.2 | [MaxxForce15] | 01.2012-12.2014 | |
| International | Terrastar 6.4 | [MaxxForce7] | 01.2010-12.2013 | |
| International | Transtar 10.5 | [MaxxForce11] | 01.2008-12.2014 | |
| International | Transtar 12.4 | [MaxxForce13] | 01.2008-12.2014 | |
| International | Transtar 12.4 | [N13] | 01.2015-12.2017 | |
| International | Workstar 10.5 | [MaxxForce11] | 01.2008-12.2015 | |
| International | Workstar 10.8 | [ISM] | 01.2008-12.2014 | |
| International | Workstar 12.4 | [MaxxForce13] | 01.2008-12.2015 | |
| International | Workstar 12.5 | [C13] | 01.2008-12.2010 | |
| International | Workstar 15.0 | [ISX15] | 01.2015-12.2016 | |
| International | Workstar 7.6 | [MaxxForceDT] | 01.2008-12.2015 | |
| International | Workstar 9.3 | [MaxxForce10] | 01.2008-12.2015 | |
| International | Workstar 9.3 | [MaxxForce9] | 01.2008-12.2015 | |
| Kme | Cascadia 12.8 | [DD13] | 01.2009-12.2017 | |
| Kme | Cascadia 14.8 | [DD15] | 01.2008-12.2017 | |
| Kme | Cascadia 15.0 | [ISX15] | 01.2009-12.2017 | |
| Kme | Cascadia 15.6 | [DD16] | 01.2010-12.2016 | |
| Kme | M2 106 6.7 | [ISB] | 01.2008-12.2013 | |
| Kme | M2 112 12.8 | [DD13] | 01.2009-12.2017 | |
| Kme | M2 112 8.9 | [ISL] | 01.2010-12.2017 | |
| WESTERN STAR | 4700 12.8 | [DD13] | 01.2013-12.2017 | |
| WESTERN STAR | 4700 8.3 | [ISC] | 01.2012-12.2014 | |
| WESTERN STAR | 4700 8.9 | [ISL] | 01.2012-12.2017 | |
| WESTERN STAR | 4800 12.8 | [DD13] | 01.2012-12.2017 | |
| WESTERN STAR | 4900EX 12.8 | [DD13] | 01.2014-12.2015 | |
| WESTERN STAR | 4900EX 14.8 | [DD15] | 01.2009-12.2017 | |
| WESTERN STAR | 4900EX 15.0 | [ISX15] | 01.2008-12.2017 | |
| WESTERN STAR | 4900EX 15.6 | [DD16] | 01.2011-12.2017 | |
| WESTERN STAR | 4900FA 12.5 | [C13] | 01.2008-12.2010 | |
| WESTERN STAR | 4900FA 12.8 | [DD13] | 01.2010-12.2017 | |
| WESTERN STAR | 4900FA 14.6 | [C15] | 01.2008-12.2015 | |
| WESTERN STAR | 4900FA 14.8 | [DD15] | 01.2009-12.2017 | |
| WESTERN STAR | 4900FA 15.0 | [ISX15] | 01.2008-12.2017 | |
| WESTERN STAR | 4900FA 15.6 | [DD16] | 01.2010-12.2017 | |
| WESTERN STAR | 4900SA 12.5 | [C13] | 01.2008-12.2010 | |
| WESTERN STAR | 4900SA 14.6 | [C15] | 01.2008-12.2015 | |
| WESTERN STAR | 4900SA 15.0 | [ISX15] | 01.2008-12.2017 | |
| WESTERN STAR | 4900SB 12.8 | [DD13] | 01.2014-12.2015 | |
| WESTERN STAR | 4900SB 14.8 | [DD15] | 01.2014-12.2015 | |
| WESTERN STAR | 4900SB 15.6 | [DD16] | 01.2014-12.2015 | |
| WESTERN STAR | 4900SF 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 4900SF 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900SF 15.0 | [ISX15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900SF 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 15.0 | [ISX15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900TS 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 15.0 | [ISX15] | 01.2014-12.2017 | |
| WESTERN STAR | 4900XD 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 5700XE 12.8 | [DD13] | 01.2014-12.2017 | |
| WESTERN STAR | 5700XE 14.8 | [DD15] | 01.2014-12.2017 | |
| WESTERN STAR | 5700XE 15.6 | [DD16] | 01.2014-12.2017 | |
| WESTERN STAR | 6900XD 15.0 | [ISX15] | 01.2012-12.2016 |
