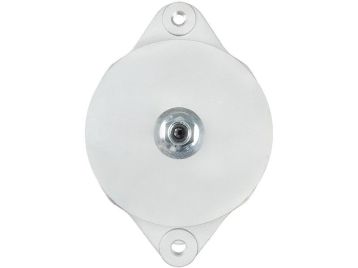

A1075S
Code: A1075S
Category: Alternators
Manufacturer: DELCO
Supplier: As-pl
: 8600300
STANDARD LINE
Brand new AS-PL Alternator
Size b: 14.00 mm
Size c: 101.00 mm
Amp.: 300 A
D.1: UNC 1/2"-13G
D.2: 13.50
D.3: 13.50
Pulley: n/a
L.1: 274.00 mm
Plug: PL_9111
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD18509A | As-pl | |
| 8600289 | DELCO | |
| 8600300 | DELCO | |
| 101-40103 | Dixie | |
| A-1783 | Dixie | |
| 645.032.300 | Psh | |
| 240-40105 | Robert's | |
| 8758N | Wai / Transpo | |
| 90-01-4698 | Wilson | |
| REM8600300 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| Blue Bird | C7 7.2L | 01.2008-12.2010 | ||
| Blue Bird | ISB 6.7 | [Cummins] | 01.2008-12.2016 | |
| International | 5000 10.5 | [MaxxForce11] | 01.2012-12.2014 | |
| International | 5900 10.5 | [MaxxForce11] | 01.2012-12.2014 |
