  3. A2156S



A2156S


Code: A2156S

Category: Alternators

Manufacturer: Hitachi

Supplier: As-pl

: LR1130-703

STANDARD LINE

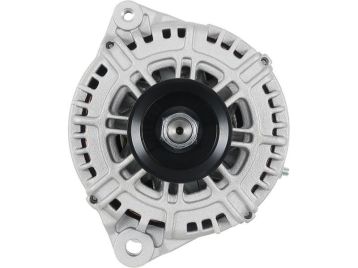

Brand new AS-PL Alternator


Size a: 40.00 mm

Size b: 12.50 mm

Size c: 87.50 mm

Amp.: 130 A

D.1: M8x1.25

D.2: 10.50

D.3: M10x1.25

Pulley: AP

L.1: 175.00 mm

Plug: PL_3308

G: 7

O.d.1: 60.00 mm

Voltage: 12 v



Reference number

CodeManufacturer
ALTE9023EFFE
PRAE9023EFFE
UD103123AAs-pl
ALT3174Electrolog
LR1110-725B Hitachi
LR1130-703 Hitachi
LR1130-703A Hitachi
LR1130-703B Hitachi
LR1130-703BR Hitachi
ALH0045Krauf
23100-EA200Nissan
23100-EA20ANissan
23100-EA20AR Nissan
2310MEA20ARWNissan
165.946.130.080Psh
849182Valeo
TG15S281Valeo
11165NWai / Transpo
90-25-1187Wilson


Usage

BrandModelTypeYearNote
INFINITIQX56 5.601.2007-12.2007
NISSANArmada 5.601.2007-12.2007
NISSANPathfinder 4.001.2005-12.2007
NISSANTitan 5.601.2007-12.2007
