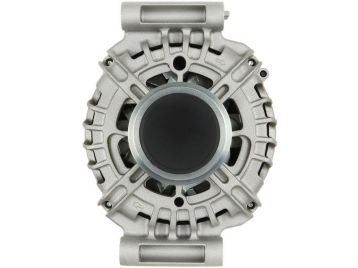

A3689S
Code: A3689S
Category: Alternators
Manufacturer: Valeo
Supplier: As-pl
: EG15T026
STANDARD LINE
Brand new AS-PL Alternator
Size a: 31.00 mm
Size c: 55.50 mm
Amp.: 150 A
D.1: 9.50
D.2: 9.50
D.3: 9.50
D.4: 9.50
E.1: 70.00 mm
E.2: 70.00 mm
Pulley: AFP
L.1: 187.00 mm
Plug: PL_2306
G: 6
O.d.1: 56.00 mm
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||||||||
| UD30066A | As-pl | ||||||||||
| AEG1533 | Autoelectro | ||||||||||
| 0125716009 | Bosch | ||||||||||
| |||||||||||
| 0125716010 | Bosch | ||||||||||
| |||||||||||
| CAL15A91GS | Casco | ||||||||||
| 40921 | Cevam | ||||||||||
| DRA1996 | DELCO | ||||||||||
| 28-8745 | Elstock | ||||||||||
| 556200RIV | Kuhner | ||||||||||
| LRA04636 | Lucas | ||||||||||
| LRA4636 | Lucas | ||||||||||
| 205.580.150.505 | Psh | ||||||||||
| 2017919AOE | Real | ||||||||||
| 2015A91.1 | Sando | ||||||||||
| EG15T020 | Valeo | ||||||||||
| |||||||||||
| EG15T026 | Valeo | ||||||||||
| |||||||||||
| 06K903023B | Vw | ||||||||||
| 06K903023D | Vw | ||||||||||
| 06K903023DX | Vw | ||||||||||
| 06K903023G | Vw | ||||||||||
| 06K903023GX | Vw | ||||||||||
| UNIT BOM 208-2078 | Wai / Transpo | ||||||||||
| 90-22-5768 | Wilson | ||||||||||
Usage
| Brand | Model | Type | Year | Note |
| AUDI | A3 2.0 Quattro | [CNTC] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro | [CJXC] | 01.2013-12.2020 | |
| AUDI | S3 2.0 Quattro | [CJXC] | 01.2014-12.2020 | |
| AUDI | S3 2.0 Quattro | [CJXD] | 01.2016-12.2017 | |
| AUDI | S3 2.0 Quattro | [CJXD] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro | [CJXG] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro | [CJXG] | 01.2016-12.2017 | |
| AUDI | S3 2.0 Quattro | [DJHA] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro | [DJHA] | 01.2016-12.2017 | |
| AUDI | S3 2.0 Quattro | [DJHB] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro | [DJHB] | 01.2016-12.2017 | |
| AUDI | S3 2.0 Quattro | [DNUE] | 01.2013-12.2020 | |
| AUDI | S3 2.0 Quattro | [DNUE] | 01.2014-12.2020 | |
| AUDI | S3 2.0 Quattro Sportback | [CJXC] | 01.2013-12.2020 | |
| AUDI | S3 2.0 Quattro Sportback | [CJXD] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro Sportback | [CJXG] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro Sportback | [DJHA] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro Sportback | [DJHB] | 01.2016-12.2020 | |
| AUDI | S3 2.0 Quattro Sportback | [DNUE] | 01.2013-12.2020 | |
| AUDI | TT 2.0 | [DKTB] | 01.2018- | |
| AUDI | TT 2.0 | [DKZB] | 01.2018- | |
| AUDI | TT 2.0 | [DNNB] | 01.2018- | |
| AUDI | TT 2.0 | [DNPA] | 01.2018- | |
| AUDI | TT 2.0 Quattro | [DKTB] | 01.2018- | |
| AUDI | TT 2.0 Quattro | [DNPA] | 01.2018- | |
| AUDI | TT 2.0 Quattro | [DNUF] | 01.2018- | |
| AUDI | TT 2.0 Quattro Roadster | [DKTB] | 01.2018- | |
| AUDI | TT 2.0 Quattro Roadster | [DNPA] | 01.2018- | |
| AUDI | TT 2.0 Quattro Roadster | [DNUF] | 01.2018- | |
| AUDI | TT 2.0 Roadster | [DKTB] | 01.2018- | |
| AUDI | TT 2.0 Roadster | [DKZB] | 01.2018- | |
| AUDI | TT 2.0 Roadster | [DNNB] | 01.2018- | |
| AUDI | TT 2.0 Roadster | [DNPA] | 01.2018- | |
| AUDI | TTS 2.0 Quattro | [DNFD] | 01.2021-12.2021 | |
| AUDI | TTS 2.0 Quattro Roadster | [DNFD] | 01.2020-12.2021 | |
| VW | Golf VII 2.0 | [CHHB] | 01.2013-12.2020 | |
| VW | Golf VII 2.0 | [CJXE] | 01.2016-12.2017 | |
| VW | Golf VII 2.0 | [CJXG] | 01.2016-12.2017 | |
| VW | Golf VII 2.0 | [CJXH] | 01.2018-12.2020 | |
| VW | Golf VII 2.0 | [CNTC] | 01.2013-12.2020 | |
| VW | Golf VII 2.0 | [CXDA] | 01.2013-12.2020 | |
| VW | Golf VII 2.0 | [DKTB] | 01.2017-12.2020 | |
| VW | Golf VII 2.0 | [DLBA] | 01.2017-12.2020 | |
| VW | Golf VII 2.0 | [DNUC] | 01.2018-12.2020 | |
| VW | Golf VII 2.0 4-Motion | [CJXC] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion | [CJXG] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion | [DJHA] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion | [DNUE] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion Variant | [CJXC] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion Variant | [CJXD] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion Variant | [CJXG] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion Variant | [DJHA] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion Variant | [DJHB] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion Variant | [DNUC] | 01.2016-12.2020 | |
| VW | Golf VII 2.0 4-Motion Variant | [DNUE] | 01.2016-12.2020 | |
| VW | Jetta 1.8 | [CPKA] | 01.2016-12.2017 | |
| VW | Jetta 1.8 | [CPRA] | 01.2016-12.2017 |
