  3. A5389S



A5389S


Code: A5389S

Category: Alternators

Manufacturer: MITSUBISHI

Supplier: As-pl

: A2TX9091

STANDARD LINE

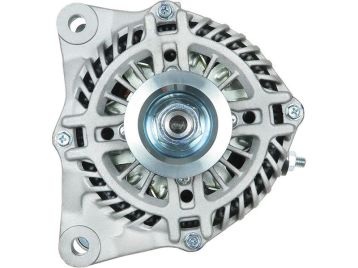

Brand new AS-PL Alternator



Size a: 45.00 mm

Size b: 13.00 mm

Size c: 66.50 mm

Amp.: 150 A

D.1: 10.50

D.2: 10.50

D.3: M10x1.25

D.4: M10x1.25

Pulley: AP

L.1: 162.00 mm

Plug: PL_3407

G: 6

O.d.1: 52.00 mm

Voltage: 12 v



Reference number

CodeManufacturer
UD20725AAs-pl
CAL35421ASCasco
9178Cevam
DA2887DELCO
DRA1777DELCO
A-80642Dixie
ALT5341Electrolog
28-7616Elstock
J5113086Herth+buss
J5113090Herth+buss
ALM9091Krauf
LRA04006Lucas
LRA4006Lucas
P58G-18-300Mazda
P58G18300Mazda
P5ACMazda
P5AC-18-300Mazda
PSLE18300Mazda
PY1CMazda
PY1C-18-300Mazda
A-TK210-05MITSUBISHI
A-TK210-05-CENMITSUBISHI
A002TX9091 MITSUBISHI
A002TX9091ZXMITSUBISHI
A2TX9091 MITSUBISHI
A2TX9091ZXMITSUBISHI
A2TX9391MITSUBISHI
A2TXV191MITSUBISHI
145.567.150Psh
20137124BNReal
2035421.0Sando
STX110182Stardax
STX110182RStardax
90-27-3453Wilson


Usage

BrandModelTypeYearNote
MAZDA2 1.5[P5Y..]01.2014-
MAZDA2 1.5 4WD[P5Y..]01.2014-
MAZDA3 2.0[PEY7]01.2013-
MAZDA6 2.0[PEXL]01.2012-
MAZDA6 2.0[PEY5]01.2012-
MAZDA6 2.0[PEY7]01.2012-
MAZDA6 2.5[PYY1]01.2012-12.2018
MAZDA6 2.5[PYY1]01.2015-12.2016
MAZDA6 2.5[PYY3]01.2012-
MAZDACX-3 2.0[PEX..]01.2015-
MAZDACX-3 2.0 AWD[PEX..]01.2015-
MAZDACX-5 2.0[PEVPS]01.2012-12.2017
MAZDACX-5 2.0[PEX3]01.2017-
MAZDACX-5 2.0[PEX3]01.2017-12.2018
MAZDACX-5 2.0[PEXB]01.2017-
MAZDACX-5 2.0[PEXB]01.2018-12.2018
MAZDACX-5 2.0[PEXB]01.2018-
MAZDACX-5 2.0[PEXP]01.2017-
MAZDACX-5 2.0[PEXP]01.2018-
MAZDACX-5 2.0[PEY4]01.2011-12.2017
MAZDACX-5 2.0[PEY4]01.2012-
MAZDACX-5 2.0[PEY5]01.2011-12.2017
MAZDACX-5 2.0[PEY5]01.2012-
MAZDACX-5 2.0[PEY5]01.2012-12.2017
MAZDACX-5 2.0[PEY6]01.2012-
MAZDACX-5 2.0[PEY7]01.2012-
MAZDACX-5 2.0 AWD[PE-VPS]01.2012-
MAZDACX-5 2.0 AWD[PEY4]01.2012-
MAZDACX-5 2.0 AWD[PEY5]01.2012-
MAZDACX-5 2.0 AWD[PEY6]01.2012-
MAZDACX-5 2.0 AWD[PEY7]01.2012-
MAZDACX-5 2.5[PYY1]01.2015-
MAZDACX-5 2.5[PYY8]01.2017-
MAZDACX-5 2.5[PYZ8]01.2017-
MAZDACX-5 2.5[PYZ8]01.2018-
MAZDACX-5 2.5[PYZA]01.2017-
MAZDACX-5 2.5[PYZC]01.2017-
MAZDACX-5 2.5[PYZC]01.2018-
MAZDACX-5 2.5 AWD[PV-VPS]01.2014-
MAZDAMX-5 1.5[P5Z1]01.2016-
MAZDAMX-5 2.0[PEX6]01.2016-
MAZDAMX-5V 1.5[P5-VPR]01.2015-
MAZDAMX-5V 1.5[P5X1]01.2015-
MAZDAMX-5V 2.0[PEX4]01.2015-
MAZDAMX-5V 2.0[PEX6]01.2015-
