  1. Alternators
  2. >
  3. A5436S



A5436S


Code: A5436S

Category: Alternators

Manufacturer: MITSUBISHI

Supplier: As-pl

: A2TX4781ZT

STANDARD LINE

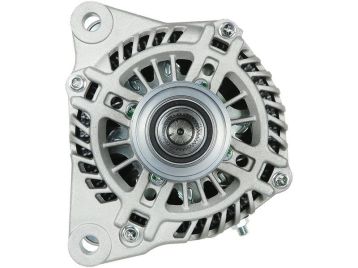

Brand new AS-PL Alternator



Size a: 32.50 mm

Size b: 13.00 mm

Size c: 66.50 mm

Amp.: 150 A

D.1: 10.00

D.2: 10.00

D.3: M10x1.25

D.4: M10x1.25

Pulley: AFP

L.1: 167.00 mm

Plug: PL_3310

G: 6

O.d.1: 51.00 mm

Voltage: 12 v



Reference number

CodeManufacturer
A5436S As-pl
UD101669AAs-pl
UD19457AAs-pl
CAL35436ASCasco
9012Cevam
DRA1900DELCO
ALT5340Electrolog
27-7633Elstock
LRA04024Lucas
LRA4024Lucas
S551 Mazda
S551-18-300Mazda
A002TX4781MITSUBISHI
A002TX4781ZTMITSUBISHI
A002TX4781ZXMITSUBISHI
A2TX4781MITSUBISHI
A2TX4781ZT MITSUBISHI
A2TX4781ZXMITSUBISHI
89216852Powermax
145.564.150.265Psh
20137634BNReal
2035436.0Sando
STX110181Stardax
STX110181RStardax


Usage

BrandModelTypeYearNote
MAZDA3 1.5 D[S5Y7]02.2016-
MAZDA3 1.5 D[S5Y7]06.2016-
MAZDA3 1.5 D[S5Y8]02.2016-
MAZDA3 1.5 D[S5Y8]06.2016-
MAZDACX-3 1.5 Skyactiv-D[S5Y2]02.2015-01.2018
MAZDACX-3 1.5 Skyactiv-D[S5Y5]02.2015-01.2018
MAZDACX-3 1.5 Skyactiv-D[S5Y7]02.2015-01.2018
MAZDACX-3 1.5 Skyactiv-D[S5Y9]02.2015-01.2018
MAZDACX-3 1.5 Skyactiv-D AWD[S5Y2]02.2015-01.2018
MAZDACX-3 1.5 Skyactiv-D AWD[S5Y5]02.2015-01.2018
MAZDACX-3 1.5 Skyactiv-D AWD[S5Y7]02.2015-01.2018
MAZDACX-3 1.5 Skyactiv-D AWD[S5Y9]02.2015-01.2018
