AR2003
Code: AR2003
Category: Alternator rotors
Manufacturer: Hitachi
Supplier: As-pl
STANDARD LINE

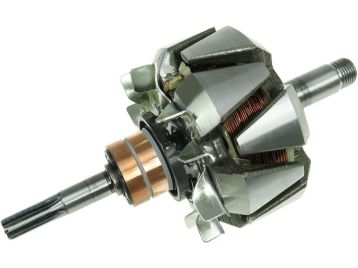

Brand new AS-PL Alternator rotor
D.: M16x1.5 mm
Amp.: 70 A
Slip ring: ASL9027
L.1: 194.60 mm
L.2: 46.10 mm
Splines: 6
O.d.1: 98.00 mm
O.d.2: 17.00 mm
Poles: 12
Bearing: No
Thread: Prawy
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 230055 | Cargo | |
| CRO20032AS | Casco | |
| ROT3016 | Electrolog | |
| L170G-41002 | Hitachi | |
| 8971226390 | Isuzu | |
| 1115081 | Powermax | |
| SRO20032 | Sando | |
| WRT6928 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | A2001 | alternators | ||
| HITACHI | LR170505 | alternators | ||
| HITACHI | LR170505B | alternators | ||
| HITACHI | LR170506 | alternators | ||
| HITACHI | LR170506B | alternators | ||
| HITACHI | LR170511 | alternators | ||
| HITACHI | LR170511B | alternators | ||
| ISUZU | 8971502000 | alternators | ||
| ISUZU | 8971502001 | alternators | ||
| ISUZU | 8972410210 | alternators |
