AS2002


Code: AS2002

Category: Alternator stators

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

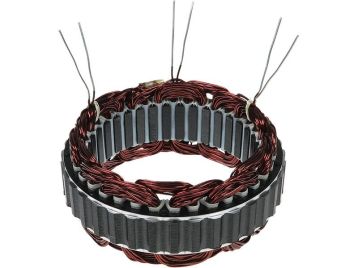

Brand new AS-PL Alternator stator



Amp.: 70 A

H.1: 57.90 mm

H.2: 22.10 mm

H.3: 26.70 mm

I.d.1: 104.30 mm

Leads: 3

O.d.1: 138.90 mm

O.d.2: 135.40 mm

O.d.3: 126.00 mm

Voltage: 12 v



Reference number

CodeManufacturer
136262Cargo
CSR20014ASCasco
CQ1120015Cq
STA3112Electrolog
L170-22002Hitachi
S/3015Orme
1111338Powermax
SSR20014Sando
WST8920Woodauto


Usage

BrandModelTypeYearNote
HITACHILR170420alternators
HITACHILR170420Balternators
ISUZU8970417900alternators
