  5. AS2003



AS2003


Code: AS2003

Category: Alternator stators

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

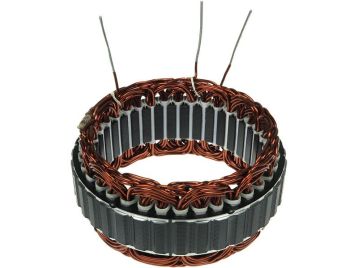

Brand new AS-PL Alternator stator



Amp.: 70 A

H.1: 58.30 mm

H.2: 22.10 mm

H.3: 26.50 mm

I.d.1: 98.00 mm

Leads: 3

O.d.1: 128.60 mm

O.d.2: 125.80 mm

O.d.3: 117.50 mm

Voltage: 12 v



Reference number

CodeManufacturer
138188Cargo
CSR20018ASCasco
CQ1120016Cq
STA3008Electrolog
L170G-6200Hitachi
L170G-9200Hitachi
1113758 Powermax
SSR20018Sando
T-V00509Unipoint
27-8107Wai / Transpo
WST8923Woodauto


Usage

BrandModelTypeYearNote
As-plA2001alternators
HITACHILR170505alternators
HITACHILR170505Balternators
HITACHILR170506alternators
HITACHILR170506Balternators
HITACHILR170510Balternators
HITACHILR170511alternators
HITACHILR170511Balternators
HITACHILR170740Balternators
HITACHILR170745alternators
HITACHILR170745Balternators
HITACHILR170752alternators
HITACHILR170752Balternators
HITACHILR170752Calternators
HITACHILR170758alternators
ISUZU8971502000alternators
ISUZU8971502001alternators
ISUZU8972410210alternators
NISSAN231000S200alternators
NISSAN231000Y700alternators
NISSAN2310032J03alternators
