  5. AS2006



AS2006


Code: AS2006

Category: Alternator stators

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

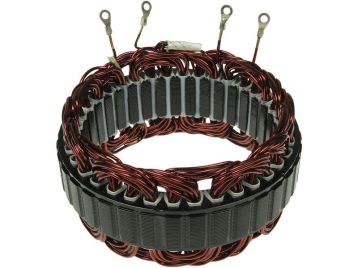

Brand new AS-PL Alternator stator



Amp.: 100 A

H.1: 63.00 mm

H.2: 22.20 mm

H.3: 28.00 mm

I.d.1: 108.20 mm

Leads: 4

O.d.1: 139.20 mm

O.d.2: 136.30 mm

O.d.3: 128.40 mm

Voltage: 12 v



Reference number

CodeManufacturer
230130Cargo
CSR20020ASCasco
STA3122Electrolog
L1100G-1200Hitachi
23102-61U00Nissan
S/3037Orme
75-183Pan Pacific
1111424Powermax
SSR20020Sando
T-V00209Unipoint
WST8962Woodauto


Usage

BrandModelTypeYearNote
As-plA2032alternators
HITACHILR1100501alternators
HITACHILR1100501Balternators
HITACHILR1100702alternators
HITACHILR180501alternators
HITACHILR195701alternators
ISUZU8971502010alternators
NISSAN2310061U00alternators
NISSAN2310097E01alternators
