AS2009


Code: AS2009

Category: Alternator stators

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

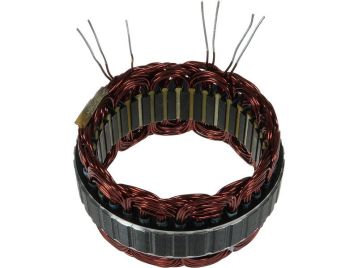

Brand new AS-PL Alternator stator



Amp.: 110 A

H.1: 63.00 mm

H.2: 22.00 mm

H.3: 28.00 mm

I.d.1: 108.00 mm

Leads: 4

O.d.1: 139.30 mm

O.d.2: 136.50 mm

O.d.3: 130.00 mm

Voltage: 12 v



Reference number

CodeManufacturer
138716Cargo
CSR20022ASCasco
STA3118Electrolog
L1110G-2200Hitachi
23102-31U01Nissan
S/3039Orme
1113999 Powermax
SSR20022Sando
27-8117Wai / Transpo
WST89104Woodauto


Usage

BrandModelTypeYearNote
As-plA2043alternators
HITACHILR1110705alternators
HITACHILR1110705Balternators
HITACHILR1110706Balternators
HITACHILR1110706Calternators
HITACHILR1110706Ealternators
HITACHILR1110706Falternators
HITACHILR1110707alternators
HITACHILR1110707Calternators
HITACHILR1110707Falternators
HITACHILR1110707Galternators
HITACHILR1110707Halternators
HITACHILR1110707Jalternators
HITACHILR1110709alternators
HITACHILR1110709Balternators
HITACHILR1110710Balternators
HITACHILR1110710Calternators
HITACHILR1110710Ealternators
HITACHILR1110718alternators
HITACHILR1110720alternators
HITACHILR1110723Balternators
HITACHILR1110723Calternators
HITACHILR1110723Ealternators
NISSAN231000L701alternators
NISSAN231002Y000alternators
NISSAN2310031U01alternators
NISSAN231004P105alternators
NISSAN231006P000alternators
