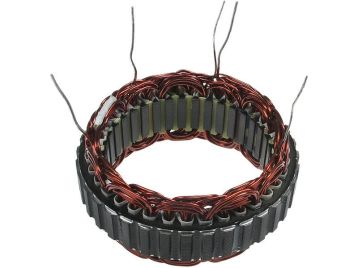

AS2024S


Code: AS2024S

Category: Alternator stators

Manufacturer: Hitachi

Supplier: As-pl

STANDARD LINE

Brand new AS-PL Alternator stator



Amp.: 70 A

H.1: 59.00 mm

H.2: 22.00 mm

H.3: 26.30 mm

I.d.1: 101.00 mm

Leads: 4

O.d.1: 138.00 mm

O.d.2: 134.00 mm

O.d.3: 123.00 mm

Voltage: 12 v



Reference number

CodeManufacturer
UD51495ASAs-pl


Usage

BrandModelTypeYearNote
As-plA2005alternators
