  3. S0096SR

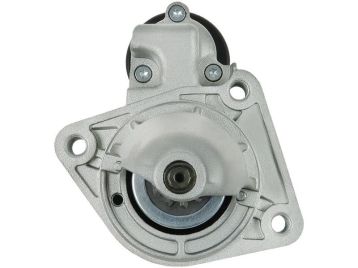

S0096SR


Code: S0096SR

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

Remanufactured AS-PL Starter motor



Size a: 76.00 mm

Size b: 27.00 mm

C.1: M10x1.5 mm

C.2: M10x1.5 mm

C.3: M10x1.5 mm

L.1: 200.00 mm

No./teeth: 10

No./mount. holes: 3

No./mount. holes with thread: 3

O.1: 67.00 mm

O.2: 104.00 mm

O.3: 82.00 mm

Power: 1.10 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
PRSL1253EFFE
PRSL125B3EFFE
PRSL125VI3EFFE
STRL1253EFFE
STRL125B3EFFE
STRL125NE3EFFE
STRL125VI3EFFE
AC-CBS1050Acauto
AI-80032Ainde
AI-80032RAinde
CGB-54389Ainde
10440688Alanko
003-130007Ashika
A17060Atl Autotechnik
SBO572AAutoteam
0001107043 Bosch
0001107087 Bosch
0001107407 Bosch
0001107417 Bosch
0001107499 Bosch
0001113010 Bosch
0001113017 Bosch
0986017060Bosch
1986S00683 Bosch
STA0062RBovez
111906Cargo
CST10572ASCasco
CST14115GSCasco
3844Cevam
DSN3001Denso
EAA-121176Eaa
EAA-121176-REaa
11778Eai
STR10219Electrolog
STR1257Electrolog
25-4389Elstock
EZ0458Elta Automotive
220172Era
0018882 Ford
1004565Ford
1004566Ford
1011330 Ford
1011331 Ford
1018882 Ford
1018883 Ford
1019852Ford
1057811Ford
1061269Ford
1061271Ford
1063999 Ford
1064000 Ford
1088649 Ford
1088650Ford
1092115 Ford
1092116 Ford
1102364 Ford
1102365 Ford
1102370 Ford
1102924 Ford
1102931 Ford
1103136 Ford
1103137 Ford
1105094 Ford
1105434 Ford
1116389 Ford
1130187Ford
1140760 Ford
1147309Ford
1151215Ford
1237323 Ford
1307578 Ford
1365665Ford
1416231Ford
1416234Ford
1473072 Ford
1535268 Ford
1535628 Ford
1539686 Ford
1575034 Ford
1671515 Ford
1732742Ford
1824489Ford
1896019Ford
1903127Ford
2109622Ford
2S6U1-1000-CA Ford
2S6U1-1000-CB Ford
2S6U1-1000-CC Ford
30659513 Ford
4022231Ford
7275964Ford
7G9N-11000-AB Ford
7G9N-11000-AC Ford
7G9N-11000-ADFord
8A39-11000-BEFord
8V21-11000-BB Ford
8V21-11000-BC Ford
8V21-11000-BD Ford
8V21-11000-BE Ford
96FB-11000-KAFord
96FB-11000-KB Ford
96FB-11000-KC Ford
96FB-11000-KD Ford
96FB-11000-LC Ford
96FB-11000-LD Ford
96FBLDFord
98AB-11000-BAFord
98AB-11000-BB Ford
98AB-11000-BC Ford
98AB-11000-BD Ford
98AB-11000-CAFord
98AB-11000-CB Ford
98AB-11000-CC Ford
98AB-11000-CD Ford
98ABBBFord
98ABBDFord
98ABCBFord
98ABCCFord
98ABCDFord
ESA1283RFord
EV6T-11000-AAFord
R96FB-11000-CCFord
R96FB-11000-KCFord
R96FB-11000-KDFord
R96FB-11000-KD1Ford
YS4U-11000-ACFord
YS4U-11000-ADFFord
YS4U1-1000-AA Ford
YS4U1-1000-AB Ford
YS4U1-1000-ADFord
YS4U1-1000-BA Ford
YS4U1-1000-BB Ford
SG0382Ghibaudi
GS107043-AGparts
GS107043B-RGparts
CS1050Hc Parts
8EA011610-021Hella
42017060Herth+buss
10010572AVItab Automotive
MT130007Japanparts
3130007Japko
STB1050Krauf
101050Kuhner
101050MKuhner
101050VKuhner
331112Logistik
331202Logistik
LRS02716Lucas
LRS2716Lucas
063280010010Magneti Marelli
063721050010Magneti Marelli
359001400730Magneti Marelli
63380010Magneti Marelli
943210501010Magneti Marelli
943253102010Magneti Marelli
944280170600Magneti Marelli
MO0073MAMagneti Marelli
MQS1050Magneti Marelli
MRS17060Magneti Marelli
MSN8010Magneti Marelli
MSR5302Magneti Marelli
MSRC1050Magneti Marelli
1E05-18-400Mazda
1E06-18-400Mazda
1E10-18-400Mazda
1E11-18-400Mazda
C601-18-400Mazda
C601-18-400AMazda
DN3218400BMazda
5010044Meat & Doria
5010146Meat & Doria
5014892Meat & Doria
94212CBPininfarina
94212CCPininfarina
88212995Powermax
20510167Prestolite
590.520.103.010Psh
590.520.103.018Psh
590.520.103.020Psh
590.520.103.215Psh
590.520.103.230Psh
590.520.103.280Psh
20401275BNReal
20450511OEReal
STM639Rollco
6010572.0Sando
6014115.1Sando
S12BH0022A2Sidat
S12VS0022Sidat
S12VS0022A2Sidat
STX200044Stardax
STX200044RStardax
201041Valeo
446502Valeo
446533Valeo
V25-12-17060Vemo
30667102Volvo
31285782Volvo
31288275Volvo
32544534Volvo
3254534Volvo
36000983Volvo
36001650Volvo
36002761Volvo
8603377Volvo
32517NWai / Transpo
BOS0001107499Woodauto
DENDSN3001Woodauto
MAHMS410Woodauto
STR50266Woodauto
STR61806Woodauto
VAL438221Woodauto
VAL446502Woodauto
99987Asam Automotive


Usage

BrandModelTypeYearNote
FORDB-Max 1.4[SPJD]10.2012-
FORDB-Max 1.4[SPJD]10.2012-
FORDB-Max 1.4[SPJE]10.2012-
FORDB-Max 1.4[SPJE]10.2012-
FORDB-Max 1.4 LPG[RTJC]10.2012-
FORDB-Max 1.4 LPG[RTJC]08.2013-
FORDB-Max 1.6 Ti[IQJA]10.2012-
FORDB-Max 1.6 Ti[IQJA]10.2012-
FORDB-Max 1.6 Ti[IQJC]10.2012-
FORDB-Max 1.6 Ti[IQJC]10.2012-
FORDC-Max 1.6[HWDA]02.2007-09.2010
FORDC-Max 1.6[HWDB]02.2007-09.2010
FORDC-Max 1.6[HXDA]04.2007-09.2010
FORDC-Max 1.6[HXDB]04.2007-09.2010
FORDC-Max 1.6[SHDA]02.2007-09.2010
FORDC-Max 1.6[SHDB]02.2007-09.2010
FORDC-Max 1.6[SHDC]02.2007-09.2010
FORDC-Max 1.6[SIDA]04.2007-09.2010
FORDC-Max 1.6 Flexifuel[MUDA]02.2011-06.2019
FORDC-Max 1.6 Flexifuel[MUDD]02.2011-06.2019
FORDC-Max 1.6 LPG[MUDA]02.2012-06.2019
FORDC-Max 1.6 LPG[MUDD]02.2012-06.2019
FORDC-Max 1.6 Ti[IQDA]10.2010-06.2019
FORDC-Max 1.6 Ti[IQDA]12.2010-06.2019
FORDC-Max 1.6 Ti[IQDB]10.2010-06.2019
FORDC-Max 1.6 Ti[IQDB]12.2010-06.2019
FORDC-Max 1.6 Ti[MUDA]02.2012-06.2019
FORDC-Max 1.6 Ti[MUDD]02.2012-06.2019
FORDC-Max 1.6 Ti[PNDA]12.2010-06.2019
FORDC-Max 1.6 Ti[PNDD]12.2010-06.2019
FORDC-Max 1.6 Ti[XTDA]12.2010-06.2019
FORDC-Max 1.6 Ti[XTDB]12.2010-06.2019
FORDEcoSport 1.5 Ti[UEJB]10.2013-
FORDEcoSport 1.5 Ti[UEJE]10.2013-
FORDEcosport 1.5 Ti-VCT10.2013-
FORDFiesta 1.25[SNJA]06.2008-04.2017
FORDFiesta 1.25[SNJA]01.2009-
FORDFiesta 1.25[SNJB]06.2008-04.2017
FORDFiesta 1.25[SNJB]01.2009-
FORDFiesta 1.25[SNJC]06.2008-04.2017
FORDFiesta 1.25[SNJC]01.2009-
FORDFiesta 1.25[SNJD]06.2008-04.2017
FORDFiesta 1.25[SNJD]01.2009-
FORDFiesta 1.25[STJA]06.2008-04.2017
FORDFiesta 1.25[STJA]08.2008-12.2012
FORDFiesta 1.25[STJB]06.2008-04.2017
FORDFiesta 1.25[STJB]08.2008-12.2012
FORDFiesta 1.25[STJC]06.2008-04.2017
FORDFiesta 1.25[STJD]06.2008-04.2017
FORDFiesta 1.25 16V[FUJA]05.2002-06.2008
FORDFiesta 1.25 16V[FUJB]05.2002-06.2008
FORDFiesta 1.25 16V[M7JA]03.2003-06.2008
FORDFiesta 1.25 16V[M7JB]03.2003-06.2008
FORDFiesta 1.25 i 16V[DHA]08.1995-01.2002
FORDFiesta 1.25 i 16V[DHB]08.1995-01.2002
FORDFiesta 1.25 i 16V[DHC]08.1995-01.2002
FORDFiesta 1.25 i 16V[DHD]08.1995-01.2002
FORDFiesta 1.25 i 16V[DHE]08.1995-01.2002
FORDFiesta 1.25 i 16V[DHF]08.1995-01.2002
FORDFiesta 1.25 i 16V[DHG]08.1995-01.2002
FORDFiesta 1.4[RTJA]10.2008-09.2012
FORDFiesta 1.4[RTJB]10.2008-09.2012
FORDFiesta 1.4[SPJA]10.2008-09.2012
FORDFiesta 1.4[SPJA]10.2008-12.2012
FORDFiesta 1.4[SPJC]10.2008-09.2012
FORDFiesta 1.4[SPJC]10.2008-12.2012
FORDFiesta 1.4[SPJE]10.2008-09.2012
FORDFiesta 1.4 16V[FXJA]11.2001-06.2008
FORDFiesta 1.4 16V[FXJB]11.2001-06.2008
FORDFiesta 1.4 i[FHA]04.1996-10.1999
FORDFiesta 1.4 i 16V[FHA]04.1996-01.2002
FORDFiesta 1.4 i 16V[FHE]04.1996-01.2002
FORDFiesta 1.4 LPG[RTJA]01.2009-04.2017
FORDFiesta 1.4 LPG[RTJB]01.2009-04.2017
FORDFiesta 1.4 LPG[RTJD]01.2009-04.2017
FORDFiesta 1.4 LPG[SPJA]01.2009-04.2017
FORDFiesta 1.4 LPG[SPJC]01.2009-04.2017
FORDFiesta 1.4 LPG[SPJE]01.2009-04.2017
FORDFiesta 1.6[XTJA]03.2015-
FORDFiesta 1.6 16V[FYJA]11.2001-06.2008
FORDFiesta 1.6 16V[FYJB]11.2001-06.2008
FORDFiesta 1.6 16V Sport[L1T]02.2000-01.2002
FORDFiesta 1.6 16V Sport[L1V]02.2000-01.2002
FORDFiesta 1.6 Ti[HXJA]06.2008-09.2012
FORDFiesta 1.6 Ti[HXJA]04.2010-
FORDFiesta 1.6 Ti[HXJB]06.2008-09.2012
FORDFiesta 1.6 Ti[HXJB]04.2010-
FORDFiesta 1.6 Ti[HXJE]06.2008-09.2012
FORDFiesta 1.6 Ti[HXJE]04.2010-
FORDFiesta 1.6 Ti[IQJA]09.2012-
FORDFiesta 1.6 Ti[IQJA]03.2015-
FORDFiesta 1.6 Ti[IQJC]09.2012-
FORDFiesta 1.6 Ti[IQJC]03.2015-
FORDFiesta 1.6 Ti[IQJE]09.2012-
FORDFiesta 1.6 Ti[IQJE]03.2015-
FORDFiesta 1.6 Ti[RVJA]06.2008-09.2012
FORDFiesta 1.6 Ti[U5JA]12.2010-
FORDFiesta 1.6 Ti-VCT[HXJA]10.2008-12.2012
FORDFiesta 1.6 Ti-VCT[HXJB]10.2008-12.2012
FORDFiesta V 1.4[FXJA]05.2002-09.2005
FORDFocus 1.4[ASDA]07.2004-09.2012
FORDFocus 1.4[ASDA]04.2005-09.2012
FORDFocus 1.4[ASDA]09.2005-07.2011
FORDFocus 1.4[ASDB]07.2004-09.2012
FORDFocus 1.4[ASDB]04.2005-09.2012
FORDFocus 1.4[ASDB]09.2005-07.2011
FORDFocus 1.6[FYDA]04.1999-03.2005
FORDFocus 1.6[FYDB]04.1999-03.2005
FORDFocus 1.6[FYDC]04.1999-03.2005
FORDFocus 1.6[FYDD]04.1999-03.2005
FORDFocus 1.6[HWDA]07.2004-09.2012
FORDFocus 1.6[HWDA]07.2004-07.2011
FORDFocus 1.6[HWDA]04.2005-09.2012
FORDFocus 1.6[HWDA]09.2005-07.2011
FORDFocus 1.6[HWDA]10.2006-09.2010
FORDFocus 1.6[HWDB]07.2004-09.2012
FORDFocus 1.6[HWDB]07.2004-07.2011
FORDFocus 1.6[HWDB]04.2005-09.2012
FORDFocus 1.6[HWDB]10.2006-09.2010
FORDFocus 1.6[SHDA]07.2004-09.2012
FORDFocus 1.6[SHDA]07.2004-07.2011
FORDFocus 1.6[SHDA]04.2005-09.2012
FORDFocus 1.6[SHDA]10.2006-09.2010
FORDFocus 1.6[SHDB]07.2004-09.2012
FORDFocus 1.6[SHDB]07.2004-07.2011
FORDFocus 1.6[SHDB]04.2005-09.2012
FORDFocus 1.6[SHDB]10.2006-09.2010
FORDFocus 1.6[SHDC]07.2004-09.2012
FORDFocus 1.6[SHDC]07.2004-07.2011
FORDFocus 1.6[SHDC]04.2005-09.2012
FORDFocus 1.6[SHDC]10.2006-09.2010
FORDFocus 1.6 Flexifuel[MUDA]07.2010-
FORDFocus 1.6 Flexifuel[MUDA]07.2010-
FORDFocus 1.6 Flexifuel[MUDA]07.2010-
FORDFocus 1.6 Flexifuel[MUDD]07.2010-
FORDFocus 1.6 Flexifuel[MUDD]07.2010-
FORDFocus 1.6 Flexifuel[MUDD]07.2010-
FORDFocus 1.6 LPG[MUDA]02.2012-
FORDFocus 1.6 LPG[MUDA]02.2012-
FORDFocus 1.6 LPG[MUDA]02.2012-
FORDFocus 1.6 LPG[MUDA]02.2012-
FORDFocus 1.6 LPG[MUDD]02.2012-
FORDFocus 1.6 LPG[MUDD]02.2012-
FORDFocus 1.6 LPG[SIDA]10.2009-07.2011
FORDFocus 1.6 LPG[SIDA]10.2009-09.2012
FORDFocus 1.6 Ti[HXDA]07.2004-09.2012
FORDFocus 1.6 Ti[HXDA]04.2005-09.2012
FORDFocus 1.6 Ti[HXDB]07.2004-09.2012
FORDFocus 1.6 Ti[HXDB]04.2005-09.2012
FORDFocus 1.6 Ti[IQDA]07.2010-05.2018
FORDFocus 1.6 Ti[IQDA]07.2010-
FORDFocus 1.6 Ti[IQDA]01.2011-
FORDFocus 1.6 Ti[IQDB]07.2010-05.2018
FORDFocus 1.6 Ti[IQDB]07.2010-
FORDFocus 1.6 Ti[IQDB]07.2010-
FORDFocus 1.6 Ti[IQDB]01.2011-
FORDFocus 1.6 Ti[IQDC]07.2010-05.2018
FORDFocus 1.6 Ti[IQDC]07.2010-
FORDFocus 1.6 Ti[IQDC]07.2010-
FORDFocus 1.6 Ti[MUDA]02.2012-12.2017
FORDFocus 1.6 Ti[MUDA]02.2012-
FORDFocus 1.6 Ti[MUDD]02.2012-12.2017
FORDFocus 1.6 Ti[MUDD]02.2012-
FORDFocus 1.6 Ti[PNDA]07.2010-12.2017
FORDFocus 1.6 Ti[PNDA]07.2010-
FORDFocus 1.6 Ti[PNDA]07.2010-
FORDFocus 1.6 Ti[PNDD]07.2010-12.2017
FORDFocus 1.6 Ti[PNDD]07.2010-
FORDFocus 1.6 Ti[PNDD]07.2010-
FORDFocus 1.6 Ti[SIDA]07.2004-09.2012
FORDFocus 1.6 Ti[SIDA]04.2005-09.2012
FORDFocus 1.6 Ti[XTDA]08.2011-12.2017
FORDFocus 1.6 Ti[XTDA]08.2011-
FORDFocus 1.6 Ti[XTDA]08.2011-
FORDFocus 1.6 Ti[XTDB]08.2011-12.2017
FORDFocus 1.6 Ti[XTDB]08.2011-
FORDFocus 1.6 Ti[XTDB]08.2011-
FORDFocus 1.6 Ti-VCT[HXDA]09.2005-07.2011
FORDFocus 1.6 Ti-VCT[HXDB]09.2005-07.2011
FORDFocus 1.6 Ti-VCT[SIDA]09.2005-07.2011
FORDFocus C-Max 1.6[HWDA]10.2003-03.2007
FORDFocus C-Max 1.6[HWDB]10.2003-03.2007
FORDFocus C-Max 1.6[SHDA]10.2003-03.2007
FORDFocus C-Max 1.6[SHDB]10.2003-03.2007
FORDFocus C-Max 1.6[SHDC]10.2003-03.2007
FORDFocus C-Max 1.6 Ti[HXDA]08.2004-03.2007
FORDFocus C-Max 1.6 Ti[SIDA]08.2004-03.2007
FORDFusion 1.25[FUJA]08.2004-12.2012
FORDFusion 1.25[FUJB]08.2004-12.2012
FORDFusion 1.4[FXJA]08.2002-12.2012
FORDFusion 1.4[FXJB]08.2002-12.2012
FORDFusion 1.4[FXJC]08.2002-12.2012
FORDFusion 1.4 LPG[UTJA]01.2010-12.2012
FORDFusion 1.6[FYJA]08.2002-11.2009
FORDFusion 1.6[FYJB]08.2002-11.2009
FORDFusion 1.6[FYJC]08.2002-11.2009
FORDGrand C-Max 1.6 Ti[IQDA]12.2010-06.2019
FORDGrand C-Max 1.6 Ti[IQDB]12.2010-06.2019
FORDGrand C-Max 1.6 Ti[PNDA]12.2010-06.2019
FORDGrand C-Max 1.6 Ti[PNDA]12.2010-12.2014
FORDGrand C-Max 1.6 Ti[PNDD]12.2010-06.2019
FORDGrand C-Max 1.6 Ti[XTDA]12.2010-06.2019
FORDKA+ 1.2[B2KA]06.2016-
FORDMondeo 1.6 Ti[KGBA]03.2010-01.2015
FORDMondeo 1.6 Ti[KGBA]07.2010-01.2015
FORDMondeo 1.6 Ti[PNBA]03.2007-01.2015
FORDMondeo 1.6 Ti[PNBA]03.2007-12.2010
FORDMondeo 1.6 Ti[RHBA]03.2007-01.2015
FORDMondeo 1.6 Ti[RHBA]03.2007-12.2012
FORDPuma 1.7 16V[MHA]03.1997-06.2002
FORDPuma 1.7 16V[MHB]03.1997-06.2002
FORDPuma 1.7 Racing ST 160[MHA]06.1999-06.2002
MAZDA2 1.2[FUJA]02.2003-06.2007
MAZDA2 1.25[FUJA]04.2003-06.2007
MAZDA2 1.3[ZJ-04]04.2003-06.2007
MAZDA2 1.4[FXJA]04.2003-06.2007
MAZDA2 1.6[FYJA]02.2003-06.2007
MAZDA2 1.6[FYJA]04.2003-06.2007
VOLVOC30 1.6[B4164S3]10.2006-12.2012
VOLVOS40 1.6[B4164S3]01.2005-12.2012
VOLVOV50 1.6[B4164S3]01.2005-12.2012


Copyright AS AUTOSTARTER PARTS SRL 2023 © All rights reserved
