S0104


Code: S0104
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0001107025
STANDARD LINE

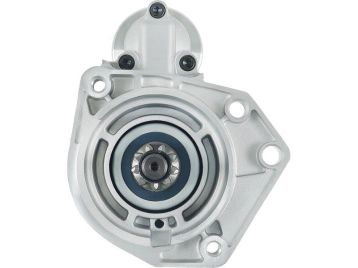

Brand new AS-PL Starter motor


Size a: 82.00 mm
Size b: 2.00 mm
C.1: M8x1.25 mm
C.2: 8.50 mm
C.3: 10.00 mm
C.4: M8x1.25 mm
L.1: 234.00 mm
No./teeth: 9
No./teeth (fits into): 9
No./mount. holes: 4
No./mount. holes with thread: 2
O.1: 74.00 mm
O.2: 30.00 mm
O.3: 58.00 mm
O.4: 104.00 mm
Power: 1.10 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
PRSS1173EFFE
STRS1173EFFE
ANM19020XAndel
S0104 As-pl
AES8192Autoelectro
0001107025 Bosch
0001107026 Bosch
0001107103 Bosch
0001107104 Bosch
0331303147647Bosch
0986016800Bosch
STA0162RBovez
112307Cargo
CST10112ASCasco
3811Cevam
DRS6800DELCO
EAA-121103Eaa
11763Eai
STR1324Electrolog
25-2049Elstock
220128Era
8016800Friesen
CS880Hc Parts
8EA011610-551Hella
8EA732659-001Hella
42016800Herth+buss
11.139.327Iskra / Letrika
AZE2147Iskra / Letrika
IS9327 Iskra / Letrika
STB0880Krauf
10880Kuhner
22.0880Lauber
331032Logistik
LRS00892Lucas
LRS892Lucas
943251340Magneti Marelli
8213336Powermax
88213336Powermax
20500892Prestolite
S1016BPrestolite
300.520.094.050Psh
20401211BNReal
RNL1680Rnl
6010112.0Sando
S12BH0082A2Sidat
MAV6680SIOM
STX200065Stardax
STX200065RStardax
STX200100Stardax
STX200100RStardax
455728 Valeo
036911023QVw
036911023SVw
036911023SVVw
036911023SXVw
036911025BVw
085911023BVw
085911023BXVw
085911023JVw
36911023SVw
36911023SVVw
36911023SXVw
36911025BVw
85911023BVw
85911023BXVw
30892NWai / Transpo
30892RWai / Transpo
STR50036Woodauto


Usage

BrandModelTypeYearNote
SEATArosa 1.4[AEX]02.1997-11.1997
SEATArosa 1.4[AKK]01.1999-10.2000
SEATArosa 1.4[AKV]05.1997-09.1999
SEATArosa 1.4[ANW]01.1999-10.2000
SEATArosa 1.4[APQ]12.1997-08.1998
SEATArosa 1.4[AUD]09.2000-06.2004
SEATArosa 1.4 16V[AFK]01.1999-09.2000
SEATArosa 1.4 16V[ANW]01.1999-10.2000
SEATArosa 1.4 16V[AQQ]05.1999-09.2000
SEATArosa 1.4 16V[AUB]09.2000-06.2004
SEATCordoba 1.0[ALD]06.1999-10.2002
SEATCordoba 1.0[ANV]06.1999-10.2002
SEATCordoba 1.0[AUC]06.1999-10.2002
SEATCordoba 1.0 16V[AST]05.2000-10.2002
SEATCordoba 1.0 16V[AVZ]05.2000-10.2002
SEATCordoba 1.0 i[AER]09.1996-06.1999
SEATCordoba 1.4[AKK]06.1999-12.2002
SEATCordoba 1.4[AUD]06.1999-12.2002
SEATCordoba 1.4 16V[APE]06.1999-06.2000
SEATCordoba 1.4 16V[AQQ]02.2000-10.2002
SEATCordoba 1.4 16V[AUA]09.1999-06.2000
SEATCordoba 1.4 16V[AUB]02.2000-10.2002
SEATCordoba 1.4 i[ABD]09.1993-12.1995
SEATCordoba 1.4 i[AEX]12.1995-12.1997
SEATCordoba 1.4 i[AKV]09.1997-12.2002
SEATCordoba 1.4 i[ANX]01.1996-05.1998
SEATCordoba 1.4 i[APQ]12.1997-12.2002
SEATCordoba 1.4 i 16V[AFH]09.1996-06.1999
SEATCordoba 1.6[ALM]09.1997-08.2002
SEATCordoba 1.6 i[ABU]09.1993-07.1994
SEATCordoba 1.6 i[AEE]03.1997-12.1998
SEATCordoba 1.6 i[ALM]09.1997-12.2002
SEATIbiza 1.0[ALD]05.1999-05.2002
SEATIbiza 1.0[ANV]05.1999-07.2000
SEATIbiza 1.0[AUC]07.2000-05.2002
SEATIbiza 1.0 16V[AST]05.2000-02.2002
SEATIbiza 1.0 16V[AVZ]05.2000-02.2002
SEATIbiza 1.0 i[AER]09.1996-10.1999
SEATIbiza 1.4[AKK]05.1999-05.2002
SEATIbiza 1.4[ANW]08.1999-08.2000
SEATIbiza 1.4[AUD]06.2000-05.2002
SEATIbiza 1.4 16V[APE]05.1999-06.2000
SEATIbiza 1.4 16V[AQQ]08.1999-07.2000
SEATIbiza 1.4 16V[AUA]05.2000-05.2002
SEATIbiza 1.4 16V[AUB]07.2000-05.2002
SEATIbiza 1.4 i[ABD]09.1993-12.1995
SEATIbiza 1.4 i[AEX]12.1995-12.1997
SEATIbiza 1.4 i[AKV]12.1997-10.1999
SEATIbiza 1.4 i[APQ]12.1997-10.1999
SEATIbiza 1.4 i 16V[AFH]09.1996-08.1999
SEATIbiza 1.6[ALM]09.1997-02.2002
SEATIbiza 1.6 i[ABU]03.1993-07.1994
SEATIbiza 1.6 i[AEE]03.1997-12.1998
SEATIbiza 1.6 i[ALM]09.1997-05.2002
SEATInca 1.4 16V[AUA]04.2000-06.2003
SEATInca 1.4 i[APQ]12.1997-06.2003
SEATInca 1.4 i[AUD]09.2000-06.2003
SEATInca 1.6 i[AEE]06.1997-09.2000
VWCaddy 1.4[AEX]11.1995-12.1997
VWCaddy 1.4[AKV]11.1997-09.2000
VWCaddy 1.4[APQ]12.1997-06.2003
VWCaddy 1.4[AUA]08.2000-06.2003
VWCaddy 1.4[AUD]09.2000-06.2003
VWCaddy 1.4 16V[AUA]08.2000-06.2003
VWCaddy 1.6[AEE]06.1996-12.2000
VWGolf III 1.4[ABD]08.1992-07.1995
VWGolf III 1.6[ABU]09.1992-09.1994
VWLupo 1.4[AHW]01.1999-
VWLupo 1.4[AKQ]10.1998-
VWLupo 1.4[APE]05.1999-
VWLupo 1.4[AUA]09.2000-04.2002
VWLupo 1.4[AUD]10.2000-
VWLupo 1.4[BBY]11.2001-
VWLupo 1.4 16V[AFK]05.1999-
VWLupo 1.4 16V[ANM]05.1999-
VWLupo 1.4 16V[AQQ]05.1999-
VWLupo 1.4 16V[AUB]05.2000-
VWPolo 1.4[AEX]08.1995-10.1999
VWPolo 1.4[AKK]10.1999-09.2001
VWPolo 1.4[AKP]12.1998-09.2001
VWPolo 1.4[AKV]05.1997-08.1999
VWPolo 1.4[ANW]10.1999-08.2000
VWPolo 1.4[ANX]12.1997-08.1999
VWPolo 1.4[APQ]11.1997-12.1999
VWPolo 1.4[AUD]06.2000-09.2001
VWPolo 1.4 16V[AFH]04.1996-10.1999
VWPolo 1.4 16V[AFK]09.1998-09.2001
VWPolo 1.4 16V[AHW]01.1999-09.2001
VWPolo 1.4 16V[APE]01.1999-09.2001
VWPolo 1.4 16V[AQQ]09.1998-09.2001
VWPolo 1.4 16V[AUA]10.1999-09.2001
VWPolo 1.4 16V[AUB]10.1999-09.2001
VWPolo 1.6[AEA]10.1994-07.1995
VWPolo 1.6[AEE]07.1995-12.1999
VWPolo 1.6[AHS]03.1996-12.1999
VWPolo 1.6[ALM]11.1995-09.2001
VWPolo 1.6 GTi 16V[AJV]04.1998-12.1999
VWPolo 1.6 GTi 16V[ARC]10.1999-09.2001
VWVento 1.6[ABU]09.1992-09.1994
