S0316

Code: S0316

---

Category: Starters

---

Manufacturer: Bosch

---

Supplier: As-pl

---

: 0001125521

---

STANDARD LINE

---

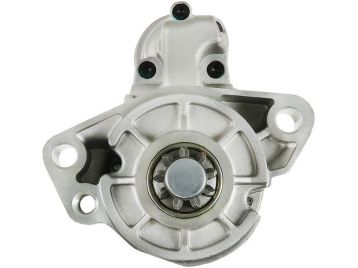

Brand new AS-PL Starter motor

---

Size a: 76.00 mm

---

Size b: 25.00 mm

---

C.1: 11.00 mm

---

C.2: 11.00 mm

---

C.3: M10x1.5 mm

---

L.1: 235.00 mm

---

No./teeth: 9

---

No./teeth (fits into): 9

---

No./mount. holes: 3

---

No./mount. holes with thread: 1

---

O.1: 104.50 mm

---

O.2: 101.00 mm

---

O.3: 24.00 mm

---

Power: 2.00 kW

---

Rotation: CW

---

Voltage: 12 v

---
