S0422


Code: S0422

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001218141

STANDARD LINE

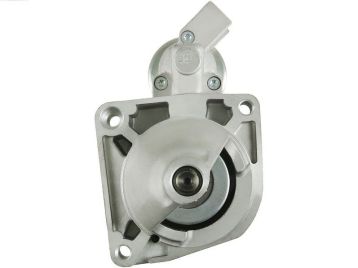

Brand new AS-PL Starter motor



Size a: 82.00 mm

Size b: 29.00 mm

C.1: M10x1.5 mm

C.2: M10x1.5 mm

C.3: M10x1.5 mm

L.1: 272.00 mm

No./teeth: 9

No./teeth (fits into): 9

No./mount. holes: 3

No./mount. holes with thread: 3

O.1: 120.00 mm

O.2: 85.00 mm

O.3: 85.00 mm

Power: 2.20 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
STRL1493EFFE
ANM18150XAndel
S0422 As-pl
AES7143Autoelectro
0001218141 Bosch
0001218741 Bosch
STA0219RBovez
111421Cargo
CST10334GSCasco
CST30117RSCasco
3800 Cevam
DRS5930DELCO
EAA-121497Eaa
11643Eai
STR10166Electrolog
STR1994Electrolog
25-1192Elstock
220183Era
46231644Fiat
71721282Fiat
71721296Fiat
7589005Fiat
7589151Fiat
75891510Fiat
7726946Fiat
77679430Fiat
8015930Friesen
GS218741-AGparts
CS554Hc Parts
42015930Herth+buss
10554Kuhner
22.0554Lauber
330706Logistik
LRS00743Lucas
LRS743Lucas
63222034 Magneti Marelli
63222138 Magneti Marelli
5010165Meat & Doria
5802000Peugeot
35258970 Prestolite
35260920 Prestolite
20401433OEReal
20404711RCReal
RNL1593Rnl
6010334Sando
6030117Sando
S12BH0083A2Sidat
MAV123340SIOM
MAV2150SIOM
SS170Sovereign
STX200527Stardax
30743RWai / Transpo
UNIT BOM 120-5055Wai / Transpo
STR52004Woodauto


Usage

BrandModelTypeYearNote
FIATDucato 1.9 Diesel[149B1.000]01.1988-08.1990
FIATDucato 1.9 Diesel[149B1.000]07.1990-03.1994
FIATDucato 1.9 Diesel[230A2.000]03.1994-04.2002
FIATDucato 1.9 Diesel Combinato[230A2.000]06.1995-04.2002
FIATDucato 1.9 Diesel Panorama[149B1.000]02.1987-08.1990
FIATDucato 1.9 Diesel Panorama[149B1.000]07.1990-03.1994
FIATDucato 1.9 TD[230A3.000]03.1994-04.2002
FIATDucato 1.9 TD[230A4.000]08.1994-04.2002
FIATDucato 1.9 TD[280A1.000]03.1989-08.1990
FIATDucato 1.9 TD[280A1.000]03.1989-03.1994
FIATDucato 1.9 TD Panorama[280A1.000]03.1989-08.1990
FIATDucato 1.9 TD Panorama[280A1.000]07.1990-03.1994
FIATTalento 1.9 Diesel[149B1.000]03.1989-03.1994
