S0445


Code: S0445

Category: Starters

Manufacturer: Bosch

Supplier: As-pl

: 0001417014

STANDARD LINE

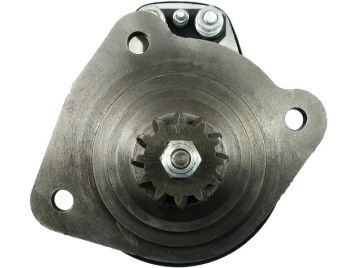

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 40.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

Oil sealed: Yes

Insulated return: Yes

L.1: 407.00 mm

No./teeth: 12

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 90.00 mm

O.2: 127.00 mm

O.3: 90.00 mm

Power: 6.6 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
PRSF4393EFFE
STRF4393EFFE
S0445As-pl
UD00247SAs-pl
UD16633SAs-pl
0001411002 Bosch
0001417014 Bosch
19024058 DELCO
UNIT BOM 920-1310Wai / Transpo


Usage

BrandModelTypeYearNote
LIEBHERRA902[D904TB]
LIEBHERRA902[D904TB]01.1991-12.2005
PoclainRC200[F6L413]01.1973-12.1977
PoclainRC491[F6L413]01.1973-12.1978
PoclainRC556[F6L413]01.1973-12.1978
VOLVOG Series 12.0[TD120A]01.1971-12.1977
VOLVOG Series 9.6[TD100A]01.1965-12.1977
