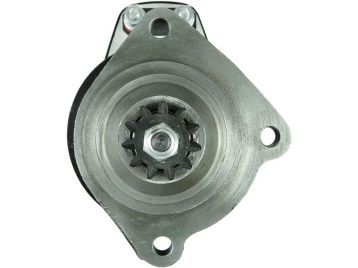

S0654S

Code: S0654S

---

Category: Starters

---

Manufacturer: Bosch

---

Supplier: As-pl

---

: 0001417068

---

STANDARD LINE

---

Brand new AS-PL Starter motor

---

Size a: 89.00 mm

---

Size b: 47.50 mm

---

C.1: 11.00 mm

---

C.2: 11.00 mm

---

C.3: 11.00 mm

---

Oil sealed: Yes

---

L.1: 405.00 mm

---

No./teeth: 11

---

No./mount. holes: 3

---

No./mount. holes with thread: 0

---

O.1: 90.00 mm

---

O.2: 90.00 mm

---

O.3: 127.00 mm

---

Power: 6.60 kW

---

Rotation: CW

---

Voltage: 24 v

---
