S0909S
Code: S0909S
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 0399707102
STANDARD LINE

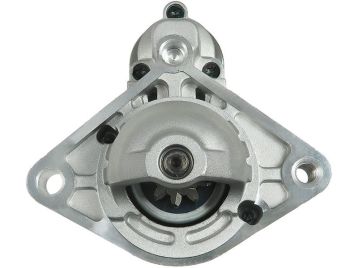

Brand new AS-PL Starter motor
Size a: 72.00 mm
Size b: 9.00 mm
C.1: 11.00 mm
C.2: M10x1.25 mm
L.1: 204.00 mm
No./teeth: 10
No./mount. holes: 2
No./mount. holes with thread: 1
O.1: 117.00 mm
Power: 1.40 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19713S | As-pl | |
| 0399707101 | Bosch | |
| 0399707102 | Bosch | |
| STB1865 | Krauf |
Usage
| Brand | Model | Type | Year | Note |
| GAC | Trumpchi GS8 2.0 | 01.2016- |
