S0917S
Code: S0917S
Category: Starters
Manufacturer: Bosch
Supplier: As-pl
: 000133E707
STANDARD LINE

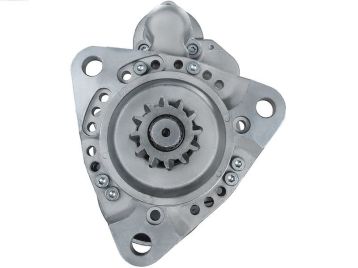

Brand new AS-PL Starter motor
Size a: 92.00 mm
Size b: 48.00 mm
C.1: 13.50 mm
C.2: 13.50 mm
C.3: 13.50 mm
L.1: 364.00 mm
No./teeth: 12
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 127.00 mm
O.2: 127.00 mm
O.3: 127.00 mm
Power: 8.40 kW
Rotation: CW
Voltage: 24 v
Reference number
| Code | Manufacturer | ||||
| UD19714S | As-pl | ||||
| 0001133511 | Bosch | ||||
| 000133E706 | Bosch | ||||
| 000133E707 | Bosch | ||||
| |||||
| CST10862AS | Casco | ||||
| 3895833 | Caterpillar | ||||
| 4235606 | Caterpillar | ||||
| 5206648 | Caterpillar | ||||
| STB1472 | Krauf | ||||
| 255987P | Kuhner | ||||
| T417666 | Perkins | ||||
| M105R3136SE | Prestolite | ||||
| 641.551.123.010 | Psh | ||||
| 641.551.123.018 | Psh | ||||
| 20401268BN | Real | ||||
| 120-33013 | Robert's | ||||
| 6010862.0 | Sando | ||||
| MAV128620A | SIOM | ||||
Usage
| Brand | Model | Type | Year | Note |
| CATERPILLAR | 525D | |||
| CATERPILLAR | 535D | |||
| CATERPILLAR | 545D | |||
| CATERPILLAR | 555D | |||
| CATERPILLAR | 950M | |||
| CATERPILLAR | 962M |
