S1133


Code: S1133

Category: Starters

Manufacturer: DELCO

Supplier: As-pl

STANDARD LINE

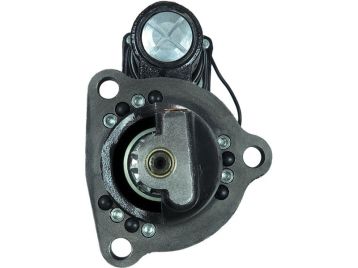

Brand new AS-PL Starter motor



Size a: 92.00 mm

Size b: 47.00 mm

C.1: 16.50 mm

C.2: 16.50 mm

C.3: 16.50 mm

L.1: 511.00 mm

No./teeth: 12

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 127.00 mm

O.2: 127.00 mm

O.3: 127.00 mm

Power: 6.50 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
STRF7823EFFE
STRS2083EFFE
CGB-1139Ainde
CGB-1502Ainde
S1133 As-pl
UD12383SAs-pl
673782C91Case
690644C92Case
A47500Case
D42964Case
R26137Case
R43343Case
R45968Case
0025900Caterpillar
0R5207Caterpillar
0R5270Caterpillar
25900Caterpillar
2S0900Caterpillar
2S900Caterpillar
3A1872Caterpillar
3A1872HCaterpillar
3R7356Caterpillar
3T2647Caterpillar
3T2652Caterpillar
3T2660Caterpillar
3T2772Caterpillar
3T4581Caterpillar
3T4582Caterpillar
3T4584Caterpillar
3Y8852Caterpillar
4N3181Caterpillar
4N3347Caterpillar
4N3348Caterpillar
4N3350Caterpillar
5A6494Caterpillar
5A6495Caterpillar
5A6522Caterpillar
5R3155Caterpillar
5R3857Caterpillar
7S3622Caterpillar
7T0798Caterpillar
7T0799Caterpillar
7T1082Caterpillar
7T1799Caterpillar
8C3597Caterpillar
8C3647Caterpillar
8C3650Caterpillar
8N2145Caterpillar
9G4337Caterpillar
9G4338Caterpillar
9G4339Caterpillar
9M1662Caterpillar
197127Cummins
3604233RXCummins
3675120RXCummins
0461107DELCO
10461107 DELCO
10461242 DELCO
10461338 DELCO
10461341 DELCO
1113827 DELCO
1113840 DELCO
1113853 DELCO
1113901 DELCO
1113923 DELCO
1113928 DELCO
1113934 DELCO
1113942 DELCO
1113949 DELCO
1113950 DELCO
1113951 DELCO
1113959 DELCO
1113960 DELCO
1113962 DELCO
1113967 DELCO
1113969 DELCO
1113982 DELCO
1113990 DELCO
1113992 DELCO
1113993 DELCO
1113998 DELCO
1114706 DELCO
1114711 DELCO
1114712 DELCO
1114729 DELCO
1114735 DELCO
1114740 DELCO
1114742 DELCO
1114743 DELCO
1114759 DELCO
1114767 DELCO
1114772 DELCO
1114774 DELCO
1114777 DELCO
1114782 DELCO
1114793 DELCO
1114805 DELCO
1114843 DELCO
1114845 DELCO
1114856 DELCO
1114857 DELCO
1114858 DELCO
1114859 DELCO
1114860 DELCO
1114861 DELCO
1114862 DELCO
1114863 DELCO
1114864 DELCO
1114871 DELCO
1114872 DELCO
1114905 DELCO
1114910 DELCO
1114914 DELCO
1114917 DELCO
1114945 DELCO
1114949 DELCO
1114953 DELCO
1114968 DELCO
1114989 DELCO
1990297 DELCO
1990324 DELCO
1990343 DELCO
1990414 DELCO
1990415 DELCO
1990432 DELCO
1993704 DELCO
1993822 DELCO
1993936 DELCO
1993945 DELCO
201-40203Dixie
201-40203RDixie
S-1139Dixie
STR2603 Electrolog
73130192Fiat
AR102770John Deere
AR102771John Deere
AR36849John Deere
AR45036John Deere
AR55313John Deere
AR55314John Deere
R14006John Deere
RE38634John Deere
RE43047John Deere
RE515895John Deere
RE61591John Deere
SE501443John Deere
TY6610John Deere
TY6611John Deere
TY6699John Deere
TY6721John Deere
TY6746John Deere
60823Kuhner
60823PKuhner
60823WKuhner
60863Kuhner
60863DKuhner
M0017260MEPrestolite
M0017280MEPrestolite
M0017422MEPrestolite
M105R3503SEPrestolite
M125R3003SEPPrestolite
MS1-401A Prestolite
MS1-410APrestolite
MS1-453Prestolite
MAV626010SIOM
MAV626040SIOM
91-01-4105Wilson
91-01-4105NWilson
STR20015Woodauto


Usage

BrandModelTypeYearNote
CASE1150[301]01.1965-12.1970
CASE1150[401]01.1965-12.1972
CASE1150[6504]01.1969-12.1972
CASE1400TK[6504]01.1969-12.1972
CASEW18[401]01.1971-12.1984
CASEW18B[504]01.1970-12.1973
CASEW20[401]01.1971-12.1979
CASEW20[504]01.1970-12.1973
CASEW24[504]01.1969-12.1973
CASEW24B[504]01.1969-12.1976
CASEW2601.1971-12.1971
CUMMINSEngine 9.101.1983-12.1985
International175C[DT466]01.1972-12.1974
International412[DT466]01.1971-12.1979
International412B[DT466]01.1980-12.1987
International431[DVT800]01.1980-12.1985
International433[DT466]01.1980-12.1985
International433[DVT800]01.1980-12.1985
International433B[DT466]01.1983-12.1985
International433B[DVT800]01.1983-12.1985
International433V[DT466]01.1980-12.1985
International433V[DVT800]01.1980-12.1985
International442[DVT800]01.1980-12.1985
International442B[DVT800]01.1983-12.1985
International444[DT466]01.1980-12.1985
International444[DVT800]01.1980-12.1985
International530[DT414]01.1978-12.1985
International540[DT466B]01.1978-12.1985
International560B[KT1150C]01.1980-12.1985
InternationalH-60E[D360]01.1974-12.1979
InternationalH-65C[DT414]01.1970-12.1979
InternationalH-65E01.1979-12.1979
InternationalH-80B[DT466]01.1974-12.1979
InternationalTD-15C[D554]01.1959-12.1959
InternationalTD-15C[DT466]01.1972-12.1974
InternationalTD-17501.1972-12.1974
InternationalTD-25C[DT817]01.1972-12.1976
JOHN DEERE101G[V504]01.1979-12.1982
JOHN DEERE5010 D01.1963-12.1965
JOHN DEERE5020[6531]01.1966-121972
JOHN DEERE77001.1975-12.1978
JOHN DEERE770A01.1978-12.1983
JOHN DEERE772A01.1978-12.1983
JOHN DEERE85001.1978-12.1981
JOHN DEERE85501.1979-12.1981
JOHN DEERE860B D01.1977-12.1980
JOHN DEERE862[6V71N]01.1980-12.1981
JOHN DEERE890[619]01.1978-12.1983
JOHN DEERE890A[619]01.1978-12.1983
JOHN DEEREEngine[6619]
JOHN DEEREH-88401.1963-12.1973
JOHN DEEREJD700[531]01.1967-12.1974
JOHN DEEREJD700A[531]01.1967-12.1974
JOHN DEEREJD762[466]01.1975-12.1981
JOHN DEEREJD762[619]01.1975-12.1981
