S1202S


Code: S1202S

Category: Starters

Manufacturer: DELCO

Supplier: As-pl

STANDARD LINE

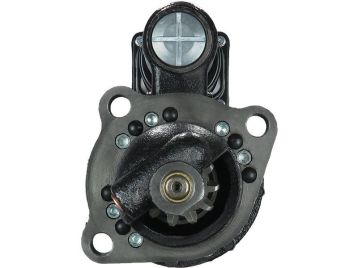

Brand new AS-PL Starter motor



Size a: 92.00 mm

Size b: 47.00 mm

C.1: 16.50 mm

C.2: 16.50 mm

C.3: 16.50 mm

L.1: 521.00 mm

No./teeth: 11

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 146.50 mm

O.2: 104.00 mm

O.3: 104.00 mm

Power: 9.00 kW

Rotation: CW

Voltage: 24 v



Reference number

CodeManufacturer
S1202S As-pl
UD17200SAs-pl
0R2697Caterpillar
0R4267Caterpillar
338-3456Caterpillar
3T2782Caterpillar
3T2783Caterpillar
3T2784Caterpillar
3T5831Caterpillar
3T8452Caterpillar
3T8952Caterpillar
6T0643Caterpillar
6V0513Caterpillar
7G6097Caterpillar
7N6056Caterpillar
7N6494Caterpillar
7N7049Caterpillar
7T9162Caterpillar
9G6096Caterpillar
9G6097Caterpillar
OR2697Caterpillar
OR4267Caterpillar
3604658RXCummins
10455855 DELCO
10461103 DELCO
1109555 DELCO
1109635 DELCO
1109781 DELCO
1109788 DELCO
1109789 DELCO
1109834 DELCO
1109836 DELCO
1990233 DELCO
1990234 DELCO
1990291 DELCO
1993753 DELCO
1993757DELCO
STR2611Electrolog
641.017.113Psh
3902NWai / Transpo
91-01-4111Wilson
STR80170Woodauto


Usage

BrandModelTypeYearNote
CATERPILLAR3508[3508]01.1986-12.1993
CATERPILLAR3512[3512]01.1986-12.1993
CATERPILLAR3516[3516]01.1986-12.1993
CATERPILLAR5130[3508]01.1992-12.1997
CATERPILLAR5130[3508]01.2006-12.2015
CATERPILLAR5130B[3508B]01.1997-12.2004
CATERPILLAR5130B[3508B]01.2006-12.2015
CATERPILLAR583K[D342]01.1983-12.1989
CATERPILLAR589[3408]01.1983-12.1992
CATERPILLAR591[3412]01.1983-12.1992
CATERPILLAR594H[D353]01.1981-12.1985
CATERPILLAR776B[3508]01.1986-12.1992
CATERPILLAR776C[3508]01.1992-12.1997
CATERPILLAR777B[3508]01.1986-12.1992
CATERPILLAR777C[3508]01.1992-12.2000
CATERPILLARD10[D348]01.1978-12.1986
CATERPILLARD10N[3412]01.1986-12.1993
CATERPILLARD10R[3412]01.1995-12.2005
CATERPILLARD11N[3408]01.1986-12.1993
CATERPILLARD8K[D342]01.1974-12.1982
CATERPILLARD8L[3408]01.1982-12.1992
CATERPILLARD9L[3412]01.1980-12.1986
CATERPILLARD9N[3408]01.1986-12.1995
CATERPILLARD9R[3408]01.2000-12.2015
