S2054
Code: S2054
Category: Starters
Manufacturer: Hitachi
Supplier: As-pl
STANDARD LINE

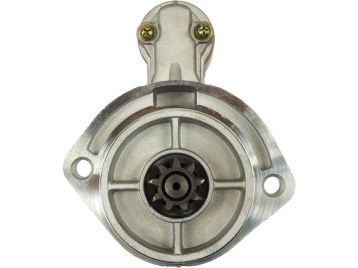

Brand new AS-PL Starter motor
Size a: 95.00 mm
Size b: 6.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
L.1: 241.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 118.00 mm
Power: 3.20 kW
Rotation: CW
Voltage: 24 v
Reference number
| Code | Manufacturer | |
| UD02145S | As-pl | |
| 3708010-C122 | Hitachi | |
| STQ3538 | Krauf |
Usage
| Brand | Model | Type | Year | Note |
| Faw | Various Models | |||
| NISSAN | Engine | [TD27] |
