S2063
Code: S2063
Category: Starters
Manufacturer: Hitachi
Supplier: As-pl
: S114-832
STANDARD LINE

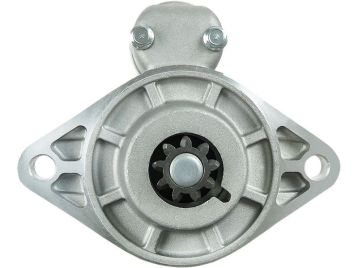

Brand new AS-PL Starter motor
Size a: 88.50 mm
Size b: 22.50 mm
C.1: 10.50 mm
C.2: 10.50 mm
L.1: 186.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 127.00 mm
Power: 1.20 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||||||||
| UD12434S | As-pl | ||||||||||
| S114-832 | Hitachi | ||||||||||
| |||||||||||
Usage
| Brand | Model | Type | Year | Note |
| ISUZU | Engine | [4JE1] |
