S5246S
Code: S5246S
Category: Starters
Manufacturer: MITSUBISHI
Supplier: As-pl
STANDARD LINE

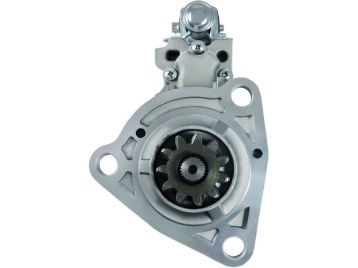

Brand new AS-PL Starter motor
Size a: 92.00 mm
Size b: 47.00 mm
C.1: 17.50 mm
C.2: 17.50 mm
C.3: 17.50 mm
L.1: 405.00 mm
No./teeth: 11
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 126.00 mm
O.2: 126.00 mm
O.3: 126.00 mm
Power: 7.00 kW
Rotation: CW
Voltage: 24 v
Reference number
| Code | Manufacturer | |
| UD13796S | As-pl | |
| S-80263 | Dixie | |
| STD4330 | Krauf | |
| M009T83579 | MITSUBISHI | |
| M9T83579 | MITSUBISHI | |
| M105R3532SE | Prestolite | |
| 130-95130 | Robert's |
Usage
| Brand | Model | Type | Year | Note |
| KENWORTH | W900 | 01.2004-12.2011 | ||
| Peterbilt | 320 | 01.2004-12.2011 | ||
| Peterbilt | 357 | 01.2003-12.2008 | ||
| Peterbilt | 359 | 01.1998-12.2007 | ||
| Peterbilt | 362 | 01.2003-12.2006 | ||
| Peterbilt | 379 | 01.1987-12.2009 | ||
| Peterbilt | 382 | 01.2004-12.2011 | ||
| Peterbilt | 389 | 01.2004-12.2011 | ||
| Peterbilt | 587 | 01.2011-12.2011 | ||
| Peterbilt | Various Models | 01.2007- |
