S5306PR


Code: S5306PR
Category: Starters
Manufacturer: MITSUBISHI
Supplier: As-pl
PREMIUM LINE

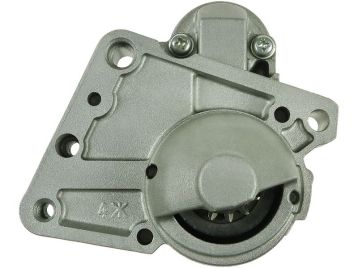

Remanufactured AS-PL Starter motor


Size a: 65.50 mm
Size b: 14.00 mm
C.1: 9.50 mm
C.2: M8x1.25 mm
C.3: M8x1.25 mm
C.4: 9.50 mm
L.1: 194.00 mm
No./teeth: 12
No./mount. holes: 4
No./mount. holes with thread: 2
O.1: 124.00 mm
O.2: 30.00 mm
O.3: 45.50 mm
O.4: 92.00 mm
Power: 1.40 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRL0793EFFE
CGB-23903Ainde
AEU1260Autoelectro
0986021651Bosch
113254Cargo
CST15108Casco
CST15108ASCasco
CST15108ESCasco
CST15108GSCasco
CST15108OSCasco
CST15108RSCasco
CST35247Casco
CST35247ASCasco
CST35247ESCasco
CST35247GSCasco
CST35247OSCasco
CST35247RSCasco
3006Cevam
DRS3903DELCO
DS5013DELCO
RAS34014DELCO
EAA-121001Eaa
STR00144Electrolog
STR0064Electrolog
25-3070Elstock
220068Era
71793771Fiat
71794297Fiat
9637813680Fiat
9688512780Fiat
K9637813680Fiat
CS1260Hc Parts
42455982Herth+buss
101260Kuhner
101260MKuhner
101260RKuhner
101260VKuhner
101329Kuhner
101329MKuhner
LRS01569Lucas
LRS1569Lucas
063721260010Magneti Marelli
944280801790Magneti Marelli
MQS1260Magneti Marelli
M000T22472 MITSUBISHI
M000T93581 MITSUBISHI
M000T93581AMMITSUBISHI
M000T93582 MITSUBISHI
M000T93582AM MITSUBISHI
M000T93582ZZ9MITSUBISHI
M0T22472 MITSUBISHI
M0T93581 MITSUBISHI
M0T93581AMMITSUBISHI
M0T93582 MITSUBISHI
M0T93582AMMITSUBISHI
M0T93582ZZ9MITSUBISHI
3640319Opel
95526662Opel
00005802AZPeugeot
1213257Peugeot
1638115880Peugeot
5802-Y5Peugeot
5802-Y6Peugeot
5802A2 Peugeot
5802AZPeugeot
5802FGPeugeot
5802FHPeugeot
5802FPPeugeot
5802M4Peugeot
5802Y4Peugeot
5802Y5Peugeot
5802Y6Peugeot
9637813680Peugeot
9640825280Peugeot
9646679980Peugeot
9663528880Peugeot
9664016980Peugeot
9688268480Peugeot
9688268580Peugeot
968826858000Peugeot
9801667580Peugeot
980166758000Peugeot
220.519.114Psh
20479801Real
STM926Rollco
6015108Sando
6035247Sando
MAV171080SIOM
STX200013Stardax
STX200013RStardax
STX200017Stardax
STX200017RStardax
STX200099Stardax
STX200099RStardax
STX200354Stardax
STX200452Stardax
28100-YV010Toyota
28100-YV011Toyota
28100YV011Toyota
438133 Valeo
455982 Valeo
726062Valeo
TS14-62Valeo
TS14E110 Valeo
3640319Vauxhall
95526662Vauxhall
32570NWai / Transpo
MITM0T93582Woodauto
STR54045Woodauto
VAL438133Woodauto


Usage

BrandModelTypeYearNote
CITROENBerlingo 1.5 BlueHDi 10006.2018-
CITROENBerlingo 1.5 BlueHDi 13003.2018-
CITROENBerlingo 1.5 BlueHDi 7506.2018-
CITROENBerlingo 1.6 BlueHDi 100[BHY(DV6FD)]12.2014-
CITROENBerlingo 1.6 BlueHDi 75[9HN(DV6ETED)]04.2015-
CITROENBerlingo 1.6 BlueHDi 75[BHW(DV6FE)]04.2015-
CITROENBerlingo 1.6 HDi[9HN(DV6ETED4)]04.2008-
CITROENBerlingo 1.6 HDi[9HT(DV6BTED4)]04.2008-
CITROENBerlingo 1.6 HDi[9HT(DV6BUTED4)]04.2008-
CITROENBerlingo 1.6 HDi[9HW(DV6BTED4)]07.2005-
CITROENBerlingo 1.6 HDi[9HX(DV6ATED4)]07.2005-
CITROENBerlingo 1.6 HDi[DV6B]07.2005-
CITROENBerlingo 1.6 HDi 4x4[9HF(DV6DTED)]02.2012-
CITROENBerlingo 1.6 HDi 4x4[9HN(DV6ETED)]02.2012-
CITROENBerlingo 1.6 HDi 90[9HF(DV6DTED)]07.2010-
CITROENBerlingo 1.6 HDi 90[9HP(DV6DTED)]07.2010-
CITROENBerlingo 1.6 HDi 90[9HX(DV6ATED4)]07.2010-
CITROENBerlingo 1.6 HDi 92[9HJ(DV6DTEDM)]07.2010-
CITROENC-Elysee 1.5 BlueHDi 10005.2018-
CITROENC-Elysee 1.6 HDi[9HJ(DV6DTEDM)]11.2012-
CITROENC-Elysee 1.6 HDi[9HP(DV6DTED)]11.2012-
CITROENC1 1.4 HDi[DV4D]06.2005-
CITROENC2 1.4 HDi[8HX(DV4TD)]04.2009-
CITROENC2 1.4 HDi[8HZ(DV4TD)]09.2003-
CITROENC3 1.4 HDi[8HX(DV4TD)]02.2002-
CITROENC3 1.4 HDi[8HX(DV4TD)]04.2004-
CITROENC3 1.4 HDi 16V[8HY(DV4TED4)]02.2002-
CITROENC3 1.5 BlueHDi 100[YHY(DV5RD)]05.2018-
CITROENC3 1.6 HDi[9HP(DV6DTED)]11.2009-
CITROENC3 1.6 HDi[9HX(DV6ATED4)]10.2005-
CITROENC3 1.6 HDi[9HX(DV6ATED4)]11.2009-
CITROENC3 1.6 HDi 115[9HD(DV6C)]09.2012-
CITROENC3 1.6 HDi 16V[9HX(DV6ATED4)]10.2005-
CITROENC3 1.6 HDi 16V[9HZ(DV6TED4)]09.2005-
CITROENC3 1.6 HDi BlueHDi 110[BHY(DV6FD)]07.2016-
CITROENC3 1.6 HDi BlueHDi 75[BHW(DV6FE)]07.2016-
CITROENC3 1.6 HDi Picasso[9HP(DV6DTED)]07.2010-
CITROENC4 1.6 BlueHDi 100[BHY(DV6FD)]07.2014-
CITROENC4 1.6 HDi[9HP(DV6DTED)]11.2009-
CITROENC4 1.6 HDi[9HR(DV6C)]11.2009-
CITROENC4 1.6 HDi[9HX(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6TED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6TED4)]07.2006-
CITROENC4 1.6 HDi[9HZ(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HZ(DV6TED4)]11.2004-
CITROENC4 1.6 HDi[9HZ(DV6TED4)]07.2006-
CITROENC4 1.6 HDi 115[9HC(DV6C)]09.2013-
CITROENC4 1.6 HDi 115[9HR(DV6C)]07.2012-
CITROENC4 1.6 HDi 115[BHX(DV6FC)]09.2013-
CITROENC4 1.6 HDi 115 Picasso[9HC(DV6C)]02.2013-
CITROENC4 1.6 HDi 115 Picasso[BHX(DV6FC)]02.2013-
CITROENC4 1.6 HDi 90[9HP(DV6DTED)]09.2013-
CITROENC4 1.6 HDi 90 Picasso[9HP(DV6DTED)]02.2013-
CITROENC4 1.6 HDi Picasso[9HY(DV6TED4)]02.2007-
CITROENC4 1.6 HDi Picasso[9HZ(DV6TED4)]02.2007-
CITROENC4 Cactus 1.6 BlueHDi 100[BHY(DV6FD)]09.2014-
CITROENC4 Cactus 1.6 HDi 90[9HP(DV6DTED)]09.2014-
CITROENC5 1.6 HDi[9HY(DV6TED4)]09.2004-
CITROENC5 1.6 HDi[9HZ(DV6TED4)]09.2004-
CITROENDispatch 1.5 BlueHDi 10006.2018-
CITROENDispatch 1.6 HDi BlueHDi 115[BHX(DV6FCU)]04.2016-
CITROENDispatch 1.6 HDi BlueHDi 95[BHS(DV6FDU)]04.2016-
CITROENDispatch 1.6 HDi BlueHDi 95[BHV(DV6FDU)]04.2016-
CITROENDS3 1.4 HDi 70[8HR(DV4C)]04.2010-
CITROENDS3 1.6 HDi 90[9HP(DV6DTED)]01.2013-
CITROENDS4 1.6 HDi 110[9HR(DV6C)]04.2011-
CITROENDS4 1.6 HDi 110[9HR]04.2011-
CITROENDS4 1.6 HDi 115[9HL(DV6C)]08.2012-
CITROENJumpy 1.6 BlueHDi 115[BHX(DV6FCU)]04.2016-
CITROENJumpy 1.6 BlueHDi 95[BHV(DV6FDU)]04.2016-
CITROENJumpy 1.6 HDi[9HU(DV6UTED4)]01.2007-
CITROENJumpy 1.6 HDi 90[9HH(DV6DUM)]01.2007-
CITROENJumpy 1.6 HDi 90[9HM(DV6UC)]01.2007-
CITROENJumpy 1.6 HDi BlueHDi 95[BHS(DV6FDU)]09.2016-
CITROENJumpy 1.6 HDi BlueHDi 95[BHV(DV6FDU)]09.2016-
CITROENNemo 1.4 HDi[8HS(DV4TD)]02.2008-
CITROENNemo 1.4 HDi[8HS(DV4TED)]04.2009-
CITROENSpaceTourer 1.6 BlueHDi 115[BHX(DV6FC)]04.2016-
CITROENSpaceTourer 1.6 BlueHDi 95[BHV(DV6FDU)]04.2016-
CITROENSpaceTourer 2.0 BlueHDi 150[AHX(DW10FD)]04.2016-
CITROENXsara 1.4 HDi[8HX(DV4TD)]01.2003-03.2005
CITROENXsara 1.4 HDi[8HX(DV4TD)]01.2003-08.2005
CITROENXsara 1.6 HDi Picasso[9HX(DV6ATED4)]09.2005-
CITROENXsara 1.6 HDi Picasso[9HY(DV6TED4)]05.2004-
CITROENXsara 1.6 HDi Picasso[9HZ(DV6TED4)]05.2004-
FIATScudo 1.6 Multijet[9H07(DV6UC)]01.2007-
FIATScudo 1.6 Multijet[9H07(DV6UC)]02.2011-
FIATScudo 1.6 Multijet[9HM(DV6UC)]01.2007-
FIATScudo 1.6 Multijet[9HM(DV6UC)]02.2011-
FIATScudo 1.6 Multijet[9HU]01.2007-
PEUGEOT1007 1.4 HDi[8HX(DV4TD)]04.2005-
PEUGEOT1007 1.4 HDi[8HZ(DV4TD)]04.2005-
PEUGEOT107 1.4 HDi[8HT(DV4TD)]06.2005-
PEUGEOT2008 1.4 HDi[8HR(DV4C)]06.2013-
PEUGEOT2008 1.6 HDi[9HP(DV6DTED)]03.2013-
PEUGEOT206 1.4 HDi[8HX(DV4TD)]09.2001-03.2009
PEUGEOT206 1.4 HDi[8HX(DV4TD)]07.2002-
PEUGEOT206 1.4 HDi[8HX(DV4TD)]09.2002-02.2007
PEUGEOT206 1.4 HDi[8HZ(DV4TD)]09.2001-03.2009
PEUGEOT206 1.4 HDi eco[8HX(DV4TD)]09.2001-
PEUGEOT206 1.4 HDi eco[8HZ(DV4TD)]09.2001-
PEUGEOT206 1.4 HDi eco 70[8HZ(DV4TD)]09.2008-
PEUGEOT206 1.6 HDi[9HZ(DV6TED4)]04.2005-
PEUGEOT206 1.6 HDi FAP[9HY(DV6TED4)]05.2004-
PEUGEOT206 1.6 HDi FAP[9HZ(DV6TED4)]05.2004-
PEUGEOT207 1.4 HDi[8HR(DV4C)]02.2006-
PEUGEOT207 1.4 HDi[8HZ(DV4TD)]02.2006-
PEUGEOT207 1.4 HDi[8HZ(DV4TD)]04.2007-
PEUGEOT207 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT207 1.6 HDi[9HV(DV6ATED4)]02.2006-
PEUGEOT207 1.6 HDi[9HV(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HX(DV6ATED4)]02.2006-
PEUGEOT207 1.6 HDi[9HX(DV6ATED4)]04.2007-
PEUGEOT207 1.6 HDi[9HX(DV6ATED4)]06.2007-
PEUGEOT207 1.6 HDi[9HY(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HZ(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HZ(DV6TED4)]02.2007-
PEUGEOT208 1.4 HDi[8HP(DV4C)]03.2012-
PEUGEOT208 1.4 HDi[8HR(DV4C)]03.2012-
PEUGEOT208 1.4 HDi[8HR(DV4C)]10.2012-
PEUGEOT208 1.6 BlueHDi 75[9HK(DV6ETEDM)]01.2013-
PEUGEOT208 1.6 BlueHDi 75[BHW(DV6FE)]01.2013-
PEUGEOT208 1.6 HDi[9HP(DV6DTED)]03.2012-
PEUGEOT208 1.6 HDi[9HP(DV6DTED)]03.2014-
PEUGEOT301 1.5 D05.2018-
PEUGEOT301 1.6 HDi 92[9HF(DV6DTED)]11.2012-
PEUGEOT307 1.4 HDi[8HX(DV4TD)]10.2001-
PEUGEOT307 1.4 HDi[8HZ(DV4TD)]10.2001-
PEUGEOT307 1.4 HDi[8HZ(DV4TD)]03.2002-
PEUGEOT307 1.6 HDi FAP[9HY(DV6TED4)]02.2004-
PEUGEOT307 1.6 HDi FAP[9HZ(DV6TED4)]02.2004-
PEUGEOT307 SW 1.4 HDi 70[8HZ(DV4TD)]03.2002-01.2005
PEUGEOT308 1.5 BlueHDi 100[YHY(DV5RD)]05.2018-
PEUGEOT308 1.6 HDi[9HC(DV6C)]09.2013-
PEUGEOT308 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT308 1.6 HDi[9HZ(DV6ATED4)]09.2007-
PEUGEOT308 1.6 HDi[BHZ(DV6FC)]09.2013-
PEUGEOT308 SW 1.5 BlueHDi 100[YHY(DV5RD)]04.2018-
PEUGEOT308 SW 1.6 HDi03.2014-
PEUGEOT308 SW 1.6 HDi[9HD(DV6C)]03.2014-
PEUGEOT380 SW 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT407 1.6 HDi FAP[9HY(DV6TED4)]05.2004-
PEUGEOT407 1.6 HDi FAP[9HZ(DV6TED4)]05.2004-
PEUGEOT407 2.0 HDi11.2004-10.2007
PEUGEOT407 SW 2.0 HDi[RHL(DW10BTED4)]11.2004-
PEUGEOTBipper 1.4 HDi[8HS(DV4TD)]02.2008-
PEUGEOTBipper 1.4 HDi[8HS(DV4TD)]04.2008-
PEUGEOTExperT 1.6 BlueHDi 115[BHS(DV6FDU)]04.2016-
PEUGEOTExperT 1.6 BlueHDi 115[BHV(DV6FDU)]04.2016-
PEUGEOTExperT 1.6 BlueHDi 115[BHX(DV6FC)]04.2016-
PEUGEOTExpert 1.6 BlueHDi 175[BHX(DV6FCU)]04.2016-
PEUGEOTExperT 1.6 BlueHDi 95[BHV(DV6FDU)]04.2016-
PEUGEOTExpert 1.6 HDi[9HU(DV6UTED4)]01.2007-
PEUGEOTExpert 1.6 HDi 9001.2007-
PEUGEOTExpert 1.6 HDi 90[9HH(DV6DUM)]01.2007-
PEUGEOTExpert 1.6 HDi 90[9HM(DV6UC)]01.2007-
PEUGEOTExpert 1.6 HDi BlueHDi 95[BHV(DV6FDU)]09.2016-
PEUGEOTExpert 1.6 HDi Tepee[9HH(DV6DUM)]01.2007-
PEUGEOTExpert 1.6 HDi Tepee[9HM(DV6UC)]01.2007-
PEUGEOTExpert 1.6 HDi Tepee[9HU(DV6UTED4)]01.2007-
PEUGEOTPartner 1.6 BlueHDi 100[BHY(DV6FD)]04.2015-
PEUGEOTPartner 1.6 BlueHDi 120[BHZ(DV6FC)]04.2015-
PEUGEOTPartner 1.6 BlueHDi 75[BHW(DV6FE)]01.2015-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHW(DV6FE)]01.2015-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHY(DV6FD)]12.2014-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHZ(DV6FC)]12.2014-
PEUGEOTPartner 1.6 HDi[9HF(DV6DTED)]03.2013-
PEUGEOTPartner 1.6 HDi[9HJ(DV6DTEDM)]04.2010-
PEUGEOTPartner 1.6 HDi[9HP(DV6DTED)]04.2010-
PEUGEOTPartner 1.6 HDi[9HS(DV6TED4BU)]04.2008-
PEUGEOTPartner 1.6 HDi[9HT(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi[9HT(DV6BTED4)]01.2009-
PEUGEOTPartner 1.6 HDi[9HW(DV6BTED4)]02.2006-
PEUGEOTPartner 1.6 HDi[9HW(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]02.2006-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]04.2008-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]01.2009-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]04.2010-
PEUGEOTPartner 1.6 HDi 75[9HK(DV6ETEDM)]08.2005-07.2008
PEUGEOTPartner 1.6 HDi BlueHDi 110 4x4[BHY(DV6FD)]04.2015-
PEUGEOTPartner 1.6 HDi Tepee[9HF(DV6DTED)]03.2013-
PEUGEOTPartner 1.6 HDi Tepee[9HP(DV6DTED)]04.2010-
PEUGEOTPartner 1.6 HDi Tepee[9HT(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HV(DV6TED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HW(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HX(DV6ATED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HX(DV6ATED4)]04.2010-
PEUGEOTRifter 1.5 BlueHDi 10009.2018-
PEUGEOTRifter 1.5 BlueHDi 13009.2018-
PEUGEOTTraveller 1.6 BlueHDi 11504.2016-
PEUGEOTTraveller 1.6 BlueHDi 9504.2016-
TOYOTAAygo 1.4 HDi[2WZTV]07.2005-08.2010


Contact

  • AS AUTOSTARTER PARTS SRL - WEBShop

Suport

  • E-mail: office@as-autostarter.ro
    Phone: +40.259.420420/+40.259.420421/+40.259.420422 / 0.728.141395 / 0.728.141394
    Fax: +40.259.420420
    Skype:

Menu


Menu

Copyright AS AUTOSTARTER PARTS SRL 2023 © All rights reserved
