  3. S5496(MITSUBISHI)



S5496(MITSUBISHI)


Code: S5496(MITSUBISHI)

Category: Starters

Manufacturer: MITSUBISHI

Supplier: MITSUBISHI

PREMIUM LINE

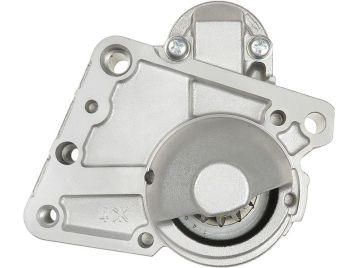

Brand new OEM MITSUBISHI Starter motor



Size a: 65.50 mm

Size b: 14.00 mm

C.1: 9.00 mm

C.2: M8x1.25 mm

C.3: M8x1.25 mm

C.4: 9.00 mm

L.1: 194.50 mm

No./teeth: 12

No./mount. holes: 4

No./mount. holes with thread: 2

O.1: 125.00 mm

O.2: 30.00 mm

O.3: 45.00 mm

O.4: 92.00 mm

Power: 1.30 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
UD100057(MITSUBISHI)SAs-pl
CST35247GSCasco
M000T93581 MITSUBISHI
M000T93581AMMITSUBISHI
M000T93582 MITSUBISHI
M000T93582AM MITSUBISHI
M000T93582ZZ9MITSUBISHI
M0T93581 MITSUBISHI
M0T93581AMMITSUBISHI
M0T93582 MITSUBISHI
M0T93582AMMITSUBISHI
M0T93582ZZ9MITSUBISHI
00005802AZPeugeot
5802A2 Peugeot
5802AZPeugeot
5802FGPeugeot
5802FPPeugeot
5802M4Peugeot
5802Y4Peugeot
5802Y5Peugeot
5802Y6Peugeot
9637813680Peugeot
9640825280Peugeot
9646679980Peugeot
9664016980Peugeot
9688268580Peugeot
968826858000Peugeot
9801667580Peugeot
980166758000Peugeot
20437742OEReal
6035247.1Sando
STX200013Stardax
STX200013RStardax
STX200017Stardax
STX200017RStardax
STX200354Stardax
STX200452Stardax
28100YV010Toyota
28100YV011Toyota
MITM0T93582Woodauto


Usage

BrandModelTypeYearNote
CITROENBerlingo 1.5 BlueHDi 10006.2018-
CITROENBerlingo 1.5 BlueHDi 13003.2018-
CITROENBerlingo 1.5 BlueHDi 7506.2018-
CITROENBerlingo 1.6 BlueHDi 100[BHY(DV6FD)]12.2014-
CITROENBerlingo 1.6 BlueHDi 75[9HN(DV6ETED)]04.2015-
CITROENBerlingo 1.6 BlueHDi 75[BHW(DV6FE)]04.2015-
CITROENBerlingo 1.6 HDi[9HN(DV6ETED4)]04.2008-
CITROENBerlingo 1.6 HDi[9HT(DV6BTED4)]04.2008-
CITROENBerlingo 1.6 HDi[9HT(DV6BUTED4)]04.2008-
CITROENBerlingo 1.6 HDi[9HW(DV6BTED4)]07.2005-
CITROENBerlingo 1.6 HDi[9HX(DV6ATED4)]07.2005-
CITROENBerlingo 1.6 HDi[DV6B]07.2005-
CITROENBerlingo 1.6 HDi 4x4[9HF(DV6DTED)]02.2012-
CITROENBerlingo 1.6 HDi 4x4[9HN(DV6ETED)]02.2012-
CITROENBerlingo 1.6 HDi 90[9HF(DV6DTED)]07.2010-
CITROENBerlingo 1.6 HDi 90[9HP(DV6DTED)]07.2010-
CITROENBerlingo 1.6 HDi 90[9HX(DV6ATED4)]07.2010-
CITROENBerlingo 1.6 HDi 92[9HJ(DV6DTEDM)]07.2010-
CITROENC-Elysee 1.5 BlueHDi 10005.2018-
CITROENC-Elysee 1.6 HDi[9HJ(DV6DTEDM)]11.2012-
CITROENC-Elysee 1.6 HDi[9HP(DV6DTED)]11.2012-
CITROENC1 1.4 HDi[DV4D]06.2005-
CITROENC2 1.4 HDi[8HX(DV4TD)]04.2009-
CITROENC2 1.4 HDi[8HZ(DV4TD)]09.2003-
CITROENC3 1.4 HDi[8HX(DV4TD)]02.2002-
CITROENC3 1.4 HDi[8HX(DV4TD)]04.2004-
CITROENC3 1.4 HDi 16V[8HY(DV4TED4)]02.2002-
CITROENC3 1.5 BlueHDi 100[YHY(DV5RD)]05.2018-
CITROENC3 1.6 HDi[9HP(DV6DTED)]11.2009-
CITROENC3 1.6 HDi[9HX(DV6ATED4)]10.2005-
CITROENC3 1.6 HDi[9HX(DV6ATED4)]11.2009-
CITROENC3 1.6 HDi 115[9HD(DV6C)]09.2012-
CITROENC3 1.6 HDi 16V[9HX(DV6ATED4)]10.2005-
CITROENC3 1.6 HDi 16V[9HZ(DV6TED4)]09.2005-
CITROENC3 1.6 HDi BlueHDi 110[BHY(DV6FD)]07.2016-
CITROENC3 1.6 HDi BlueHDi 75[BHW(DV6FE)]07.2016-
CITROENC3 Picasso 1.6 HDi[9HP(DV6DTED)]07.2010-
CITROENC4 1.6 BlueHDi 100[BHY(DV6FD)]07.2014-
CITROENC4 1.6 HDi[9HP(DV6DTED)]11.2009-
CITROENC4 1.6 HDi[9HR(DV6C)]11.2009-
CITROENC4 1.6 HDi[9HX(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6TED4)]11.2004-
CITROENC4 1.6 HDi[9HY(DV6TED4)]07.2006-
CITROENC4 1.6 HDi[9HZ(DV6ATED4)]11.2004-
CITROENC4 1.6 HDi[9HZ(DV6TED4)]11.2004-
CITROENC4 1.6 HDi[9HZ(DV6TED4)]07.2006-
CITROENC4 1.6 HDi 115[9HC(DV6C)]09.2013-
CITROENC4 1.6 HDi 115[9HR(DV6C)]07.2012-
CITROENC4 1.6 HDi 115[BHX(DV6FC)]09.2013-
CITROENC4 1.6 HDi 90[9HP(DV6DTED)]09.2013-
CITROENC4 Cactus 1.6 BlueHDi 100[BHY(DV6FD)]09.2014-
CITROENC4 Cactus 1.6 HDi 90[9HP(DV6DTED)]09.2014-
CITROENC4 Picasso 1.6 HDi[9HY(DV6TED4)]02.2007-
CITROENC4 Picasso 1.6 HDi[9HZ(DV6TED4)]02.2007-
CITROENC4 Picasso 1.6 HDi 115[9HC(DV6C)]02.2013-
CITROENC4 Picasso 1.6 HDi 115[BHX(DV6FC)]02.2013-
CITROENC4 Picasso 1.6 HDi 90[9HP(DV6DTED)]02.2013-
CITROENC5 1.6 HDi[9HY(DV6TED4)]09.2004-
CITROENC5 1.6 HDi[9HZ(DV6TED4)]09.2004-
CITROENDispatch 1.5 BlueHDi 10006.2018-
CITROENDispatch 1.6 HDi BlueHDi 115[BHX(DV6FCU)]04.2016-
CITROENDispatch 1.6 HDi BlueHDi 95[BHS(DV6FDU)]04.2016-
CITROENDispatch 1.6 HDi BlueHDi 95[BHV(DV6FDU)]04.2016-
CITROENDS3 1.4 HDi 70[8HR(DV4C)]04.2010-
CITROENDS3 1.6 HDi 90[9HP(DV6DTED)]01.2013-
CITROENDS4 1.6 HDi 110[9HR(DV6C)]04.2011-
CITROENDS4 1.6 HDi 110[9HR]04.2011-
CITROENDS4 1.6 HDi 115[9HL(DV6C)]08.2012-
CITROENJumpy 1.6 BlueHDi 115[BHX(DV6FCU)]04.2016-
CITROENJumpy 1.6 BlueHDi 95[BHV(DV6FDU)]04.2016-
CITROENJumpy 1.6 HDi[9HU(DV6UTED4)]01.2007-
CITROENJumpy 1.6 HDi 90[9HH(DV6DUM)]01.2007-
CITROENJumpy 1.6 HDi 90[9HM(DV6UC)]01.2007-
CITROENJumpy 1.6 HDi BlueHDi 95[BHS(DV6FDU)]09.2016-
CITROENJumpy 1.6 HDi BlueHDi 95[BHV(DV6FDU)]09.2016-
CITROENNemo 1.4 HDi[8HS(DV4TD)]02.2008-
CITROENNemo 1.4 HDi[8HS(DV4TED)]04.2009-
CITROENSpaceTourer 1.6 BlueHDi 115[BHX(DV6FC)]04.2016-
CITROENSpaceTourer 1.6 BlueHDi 95[BHV(DV6FDU)]04.2016-
CITROENSpaceTourer 2.0 BlueHDi 150[AHX(DW10FD)]04.2016-
CITROENXsara 1.4 HDi[8HX(DV4TD)]01.2003-03.2005
CITROENXsara 1.4 HDi[8HX(DV4TD)]01.2003-08.2005
CITROENXsara Picasso 1.6 HDi[9HX(DV6ATED4)]09.2005-
CITROENXsara Picasso 1.6 HDi[9HY(DV6TED4)]05.2004-
CITROENXsara Picasso 1.6 HDi[9HZ(DV6TED4)]05.2004-
FIATScudo 1.6 Multijet[9H07(DV6UC)]01.2007-
FIATScudo 1.6 Multijet[9H07(DV6UC)]02.2011-
FIATScudo 1.6 Multijet[9HM(DV6UC)]01.2007-
FIATScudo 1.6 Multijet[9HM(DV6UC)]02.2011-
FIATScudo 1.6 Multijet[9HU]01.2007-
PEUGEOT1007 1.4 HDi[8HX(DV4TD)]04.2005-
PEUGEOT1007 1.4 HDi[8HZ(DV4TD)]04.2005-
PEUGEOT107 1.4 HDi[8HT(DV4TD)]06.2005-
PEUGEOT2008 1.4 HDi[8HR(DV4C)]06.2013-
PEUGEOT2008 1.6 HDi[9HP(DV6DTED)]03.2013-
PEUGEOT206 1.4 HDi[8HX(DV4TD)]09.2001-03.2009
PEUGEOT206 1.4 HDi[8HX(DV4TD)]07.2002-
PEUGEOT206 1.4 HDi[8HX(DV4TD)]09.2002-02.2007
PEUGEOT206 1.4 HDi[8HZ(DV4TD)]09.2001-03.2009
PEUGEOT206 1.4 HDi eco[8HX(DV4TD)]09.2001-
PEUGEOT206 1.4 HDi eco[8HZ(DV4TD)]09.2001-
PEUGEOT206 1.4 HDi eco 70[8HZ(DV4TD)]09.2008-
PEUGEOT206 1.6 HDi[9HZ(DV6TED4)]04.2005-
PEUGEOT206 1.6 HDi FAP[9HY(DV6TED4)]05.2004-
PEUGEOT206 1.6 HDi FAP[9HZ(DV6TED4)]05.2004-
PEUGEOT207 1.4 HDi[8HR(DV4C)]02.2006-
PEUGEOT207 1.4 HDi[8HZ(DV4TD)]02.2006-
PEUGEOT207 1.4 HDi[8HZ(DV4TD)]04.2007-
PEUGEOT207 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT207 1.6 HDi[9HV(DV6ATED4)]02.2006-
PEUGEOT207 1.6 HDi[9HV(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HX(DV6ATED4)]02.2006-
PEUGEOT207 1.6 HDi[9HX(DV6ATED4)]04.2007-
PEUGEOT207 1.6 HDi[9HX(DV6ATED4)]06.2007-
PEUGEOT207 1.6 HDi[9HY(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HZ(DV6TED4)]02.2006-
PEUGEOT207 1.6 HDi[9HZ(DV6TED4)]02.2007-
PEUGEOT208 1.4 HDi[8HP(DV4C)]03.2012-
PEUGEOT208 1.4 HDi[8HR(DV4C)]03.2012-
PEUGEOT208 1.4 HDi[8HR(DV4C)]10.2012-
PEUGEOT208 1.6 BlueHDi 75[9HK(DV6ETEDM)]01.2013-
PEUGEOT208 1.6 BlueHDi 75[BHW(DV6FE)]01.2013-
PEUGEOT208 1.6 HDi[9HP(DV6DTED)]03.2012-
PEUGEOT208 1.6 HDi[9HP(DV6DTED)]03.2014-
PEUGEOT301 1.5 D05.2018-
PEUGEOT301 1.6 HDi 92[9HF(DV6DTED)]11.2012-
PEUGEOT307 1.4 HDi[8HX(DV4TD)]10.2001-
PEUGEOT307 1.4 HDi[8HZ(DV4TD)]10.2001-
PEUGEOT307 1.4 HDi[8HZ(DV4TD)]03.2002-
PEUGEOT307 1.6 HDi FAP[9HY(DV6TED4)]02.2004-
PEUGEOT307 1.6 HDi FAP[9HZ(DV6TED4)]02.2004-
PEUGEOT307 SW 1.4 HDi 70[8HZ(DV4TD)]03.2002-01.2005
PEUGEOT308 1.5 BlueHDi 100[YHY(DV5RD)]05.2018-
PEUGEOT308 1.6 HDi[9HC(DV6C)]09.2013-
PEUGEOT308 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT308 1.6 HDi[9HZ(DV6ATED4)]09.2007-
PEUGEOT308 1.6 HDi[BHZ(DV6FC)]09.2013-
PEUGEOT308 SW 1.5 BlueHDi 100[YHY(DV5RD)]04.2018-
PEUGEOT308 SW 1.6 HDi03.2014-
PEUGEOT308 SW 1.6 HDi[9HD(DV6C)]03.2014-
PEUGEOT380 SW 1.6 HDi[9HP(DV6DTED)]11.2009-
PEUGEOT407 1.6 HDi FAP[9HY(DV6TED4)]05.2004-
PEUGEOT407 1.6 HDi FAP[9HZ(DV6TED4)]05.2004-
PEUGEOT407 2.0 HDi11.2004-10.2007
PEUGEOT407 SW 2.0 HDi[RHL(DW10BTED4)]11.2004-
PEUGEOTBipper 1.4 HDi[8HS(DV4TD)]02.2008-
PEUGEOTBipper 1.4 HDi[8HS(DV4TD)]04.2008-
PEUGEOTExperT 1.6 BlueHDi 115[BHS(DV6FDU)]04.2016-
PEUGEOTExperT 1.6 BlueHDi 115[BHV(DV6FDU)]04.2016-
PEUGEOTExperT 1.6 BlueHDi 115[BHX(DV6FC)]04.2016-
PEUGEOTExpert 1.6 BlueHDi 175[BHX(DV6FCU)]04.2016-
PEUGEOTExperT 1.6 BlueHDi 95[BHV(DV6FDU)]04.2016-
PEUGEOTExpert 1.6 HDi[9HU(DV6UTED4)]01.2007-
PEUGEOTExpert 1.6 HDi 9001.2007-
PEUGEOTExpert 1.6 HDi 90[9HH(DV6DUM)]01.2007-
PEUGEOTExpert 1.6 HDi 90[9HM(DV6UC)]01.2007-
PEUGEOTExpert 1.6 HDi BlueHDi 95[BHV(DV6FDU)]09.2016-
PEUGEOTExpert 1.6 HDi Tepee[9HH(DV6DUM)]01.2007-
PEUGEOTExpert 1.6 HDi Tepee[9HM(DV6UC)]01.2007-
PEUGEOTExpert 1.6 HDi Tepee[9HU(DV6UTED4)]01.2007-
PEUGEOTPartner 1.6 BlueHDi 100[BHY(DV6FD)]04.2015-
PEUGEOTPartner 1.6 BlueHDi 120[BHZ(DV6FC)]04.2015-
PEUGEOTPartner 1.6 BlueHDi 75[BHW(DV6FE)]01.2015-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHW(DV6FE)]01.2015-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHY(DV6FD)]12.2014-
PEUGEOTPartner 1.6 BlueHDi Tepee[BHZ(DV6FC)]12.2014-
PEUGEOTPartner 1.6 HDi[9HF(DV6DTED)]03.2013-
PEUGEOTPartner 1.6 HDi[9HJ(DV6DTEDM)]04.2010-
PEUGEOTPartner 1.6 HDi[9HP(DV6DTED)]04.2010-
PEUGEOTPartner 1.6 HDi[9HS(DV6TED4BU)]04.2008-
PEUGEOTPartner 1.6 HDi[9HT(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi[9HT(DV6BTED4)]01.2009-
PEUGEOTPartner 1.6 HDi[9HW(DV6BTED4)]02.2006-
PEUGEOTPartner 1.6 HDi[9HW(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]02.2006-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]04.2008-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]01.2009-
PEUGEOTPartner 1.6 HDi[9HX(DV6ATED4)]04.2010-
PEUGEOTPartner 1.6 HDi 75[9HK(DV6ETEDM)]08.2005-07.2008
PEUGEOTPartner 1.6 HDi BlueHDi 110 4x4[BHY(DV6FD)]04.2015-
PEUGEOTPartner 1.6 HDi Tepee[9HF(DV6DTED)]03.2013-
PEUGEOTPartner 1.6 HDi Tepee[9HP(DV6DTED)]04.2010-
PEUGEOTPartner 1.6 HDi Tepee[9HT(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HV(DV6TED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HW(DV6BTED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HX(DV6ATED4)]04.2008-
PEUGEOTPartner 1.6 HDi Tepee[9HX(DV6ATED4)]04.2010-
PEUGEOTRifter 1.5 BlueHDi 10009.2018-
PEUGEOTRifter 1.5 BlueHDi 13009.2018-
PEUGEOTTraveller 1.6 BlueHDi 11504.2016-
PEUGEOTTraveller 1.6 BlueHDi 9504.2016-
TOYOTAAygo 1.4 HDi[2WZTV]07.2005-08.2010
