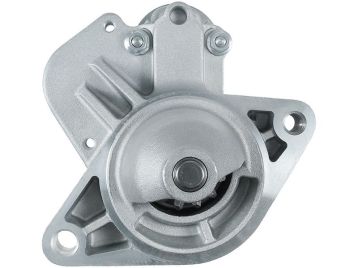

S6496S
Code: S6496S
Category: Starters
Manufacturer: Denso
Supplier: As-pl
: 438000-2460
STANDARD LINE
Brand new AS-PL Starter motor
Size a: 73.80 mm
Size b: 13.90 mm
C.1: 11.00 mm
C.2: M10x1.25 mm
L.1: 216.00 mm
No./teeth: 13
No./mount. holes: 2
No./mount. holes with thread: 1
O.1: 123.00 mm
Power: 1.70 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD101243S | As-pl | |
| AEX1350 | Autoelectro | |
| CST40592GS | Casco | |
| 3894 | Cevam | |
| DRS1318 | DELCO | |
| 438000-2460 | Denso | |
| DSN1475 | Denso | |
| 25-5286 | Elstock | |
| J5212167 | Herth+buss | |
| 256488D | Kuhner | |
| LRS04123 | Lucas | |
| LRS4123 | Lucas | |
| 190.962.132.260 | Psh | |
| 20432295OE | Real | |
| 6040592.1 | Sando | |
| 28100-0Y240 | Toyota | |
| 28100-37140 | Toyota | |
| DENDSN1475 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| TOYOTA | Auris 1.2 | [8NR-FTS] | ||
| TOYOTA | C-HR 1.2 | [8NR-FTS] | ||
| TOYOTA | C-HR 1.2 4WD | [8NR-FTS] | ||
| TOYOTA | Corolla 1.2 | [8NR-FTS] |
