S9021SR

Code: S9021SR

---

Category: Starters

---

Manufacturer: Magneton

---

Supplier: As-pl

---

STANDARD LINE

---

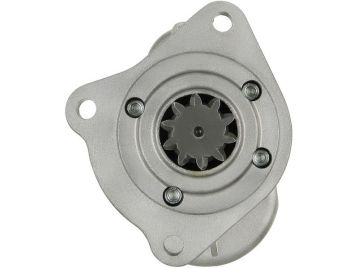

Remanufactured AS-PL Starter motor

---

Size a: 89.00 mm

---

Size b: 30.00 mm

---

C.1: 11.50 mm

---

C.2: 11.50 mm

---

C.3: 11.50 mm

---

L.1: 230.00 mm

---

No./teeth: 10

---

No./mount. holes: 3

---

No./mount. holes with thread: 0

---

O.1: 127.00 mm

---

O.2: 90.00 mm

---

O.3: 90.00 mm

---

Power: 3.00 kW

---

Rotation: CW

---

Voltage: 12 v

---
