  3. S9037



S9037


Code: S9037

Category: Starters

Manufacturer: Magneton

Supplier: As-pl

: 9142764

STANDARD LINE

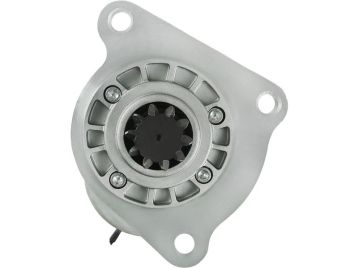

Brand new AS-PL Starter motor



Size a: 92.00 mm

Size b: 27.00 mm

C.1: 12.50 mm

C.2: 12.50 mm

C.3: 12.50 mm

L.1: 232.00 mm

No./teeth: 10

No./teeth (fits into): 10

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 103.00 mm

O.2: 144.00 mm

O.3: 105.00 mm

Power: 2.70 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
STRS0733EFFE
DEM943Adi
S9037 As-pl
LXS9303Ashdown Ingram
AES3101Autoelectro
0001362084 Bosch
0986018161Bosch
110819Cargo
DRS3427DELCO
EAA-111645Eaa
STR7890Electrolog
STRX736Electrolog
8018161-FFriesen
CS1032Hc Parts
11.130.632 Iskra / Letrika
AZJ3206 Iskra / Letrika
IS0632 Iskra / Letrika
IS1046 Iskra / Letrika
27522 Lucas
LES0021Lucas
LRS00301Lucas
LRS301 Lucas
9142764 Magneton
MS 149Mahle
MS 243Mahle
168065M3Massey Ferguson
1691805R1Massey Ferguson
1808449R2Massey Ferguson
1868283M5Massey Ferguson
1868283R5Massey Ferguson
3597371M2Massey Ferguson
3597371R2Massey Ferguson
9643382M1Massey Ferguson
1873A052Perkins
2873008Perkins
2873B052Perkins
2873B061 Perkins
2873D004Perkins
20500301Prestolite
650.004.103Psh
6005007548Renault
6005700082Renault
7701028780Renault
7701030289Renault
S12LU0380A2Sidat
MAV3730SIOM
STX200783Stardax


Usage

BrandModelTypeYearNote
IMT536 2WD/4WD(IMRM33/T)
IMT539(IMRM33/T)
IMT539 2WD/4WD(IMRM33/T)
IMT542 2WD/4WD(IMRM33/T)
IMT546 2WD/4WD(IMRDM33/T)
IMT549 2WD/4WD(IMRDM33/T)
IMT560(IMRM34/T)
IMT565(IMRDM34/T)
MASSEY FERGUSONMF 13301.1969-
MASSEY FERGUSONMF 135V(PerkinsAD3.152)01.1969-
MASSEY FERGUSONMF 14001.1969-
MASSEY FERGUSONMF 145S01.1969-
MASSEY FERGUSONMF 145V01.1969-
MASSEY FERGUSONMF 15201.1980-01.1983
MASSEY FERGUSONMF 152V01.1983-01.1986
MASSEY FERGUSONMF 155(PerkinsAD4.203)01.1969-
MASSEY FERGUSONMF 158(PerkinsAD4.203)01.1969-
MASSEY FERGUSONMF 165(PerkinsAD4.203)01.1969-01.1976
MASSEY FERGUSONMF 230(PerkinsAD3.152)01.1983-
MASSEY FERGUSONMF 23501.1977-
MASSEY FERGUSONMF 240(PerkinsAD3.152)01.1979-
MASSEY FERGUSONMF 24501.1977-
MASSEY FERGUSONMF 250(PerkinsAD3.152)01.1983-01.1986
MASSEY FERGUSONMF 255(PerkinsAD3.152)01.1977-
MASSEY FERGUSONMF 26001.1975-
MASSEY FERGUSONMF 350(PerkinsAD3.152)01.1987-
MASSEY FERGUSONMF 355(PerkinsAT3.152)01.1986-01.1990
MASSEY FERGUSONMF 360(PerkinsAT3.152)01.1983-
MASSEY FERGUSONMF 535(PerkinsA6.354.4)01.1977-
MASSEY FERGUSONMF 550(PerkinsAD3.152)01.1976-
MASSEY FERGUSONMF 560(PerkinsAT6.354.4)01.1980-01.1982
URSUS2802-3250
URSUS3502-3250
URSUS3514-3250
URSUS3822
