  3. S9083



S9083


Code: S9083

Category: Starters

Manufacturer: Magneton

Supplier: As-pl

STANDARD LINE

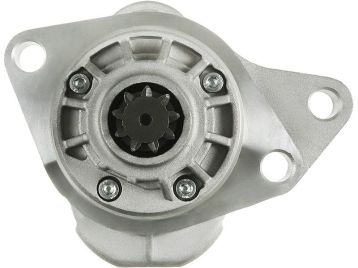

Brand new AS-PL Starter motor



Size a: 76.00 mm

Size b: 33.00 mm

C.1: 12.50 mm

C.2: 12.50 mm

C.3: 12.50 mm

L.1: 168.00 mm

No./teeth: 9

No./teeth (fits into): 9

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 33.00 mm

O.2: 111.00 mm

O.3: 123.00 mm

Power: 1.70 kW

Rotation: ACW

Voltage: 12 v



Reference number

CodeManufacturer
STRS0553EFFE
STRS7413EFFE
S9083 As-pl
0001110076 Bosch
0001110077 Bosch
0001110098 Bosch
0001110099 Bosch
0001124003 Bosch
0001124004 Bosch
0001125005 Bosch
0001125006 Bosch
0001125014Bosch
0001125035 Bosch
0001125036 Bosch
112286Cargo
EAA-121627Eaa
STRX717Electrolog
220131Era
220388Era
1032666 Ford
1147435 Ford
1M2111000AA Ford
95VW11000EAFord
95VW11000EB Ford
95VW11000EC Ford
95VW11000GCFord
97VW11000BA Ford
97VW11000BBFord
CS713Hc Parts
11.130.723 Iskra / Letrika
11.131.057 Iskra / Letrika
AZE2537 Iskra / Letrika
AZE2626 Iskra / Letrika
STB0713Krauf
101287Kuhner
10713Kuhner
10789Kuhner
443115141395Magneton
9141395 Magneton
9141396 Magneton
915109EMagneton
MS 303Mahle
MS 48Mahle
0041518701Mercedes
A0041518701Mercedes
8213123Powermax
20500966Prestolite
35259250 Prestolite
M1209HPrestolite
M1210EPrestolite
M1210GPrestolite
300.523.093Psh
S12BH0142A2Sidat
MAV172090SIOM
MAV172100SIOM
MAV3020SIOM
MAV6450SIOM
STX200038Stardax
STX200038RStardax
STX200138Stardax
STX200138RStardax
STX200169Stardax
STX200169RStardax
D7RS129 Valeo
D7RS29 Valeo
020911012PVw
020911023BVw
020911023DVw
020911023DXVw
020911023PVw
020911023PXVw
020911023RVw
020911024AVw
020911024AXVw
020911024CVw
068911023TVw
068911023TXVw
098911023AVw
098911023BVw
1HS911023DVw
VVW020911024CVw


Usage

BrandModelTypeYearNote
AUDIA3 1.9 TDi[AGR]09.1996-07.2001AT
AUDIA3 1.9 TDi[AHF]01.1997-08.2000AT
AUDIA3 1.9 TDi[ALH]09.1996-07.2001AT
AUDIA3 1.9 TDi[ASV]09.1999-07.2001AT
FORDGalaxy 1.9 TDi[AVG]08.1997-04.2000
FORDGalaxy 2.0 i[NSE]11.1995-AT
FORDGalaxy 2.3 16V[Y5B]01.1997-AT
FORDGalaxy 2.8 i[AAA]02.1995-04.1998AT
FORDGalaxy 2.8 i 4x4[AAA]04.1996-04.1998
FORDTaurus 3.8 GL01.1988-01.1990
MERCEDES BENZV 280 2.8(638)[M104.900]08.1997-07.2003
SEATAlhambra 1.9 TDi[AFN]08.1996-06.2000
SEATAlhambra 1.9 TDi[AVG]08.1996-06.2000
SEATCordoba 1.9 D[1Y]02.1993-08.1996
SEATCordoba 1.9 D[1Y]01.1996-08.1996
SEATCordoba 1.9 SDi[AEF]08.1996-06.1999
SEATCordoba 1.9 SDi[AEY]08.1996-06.1999
SEATCordoba 1.9 SDi[AEY]09.1996-06.1999
SEATCordoba 1.9 SDi[AGP]06.1999-
SEATCordoba 1.9 SDi[AGP]06.1999-10.2002
SEATCordoba 1.9 SDi[AQM]06.1999-10.2002
SEATCordoba 1.9 SDi[AQM]06.1999-
SEATCordoba 1.9 TD[AAZ]02.1993-08.1996
SEATIbiza 1.9 D[1Y]04.1993-08.1996
SEATIbiza 1.9 D[1Y]10.1994-08.1996
SEATIbiza 1.9 SDi[AEF]08.1996-08.1999
SEATIbiza 1.9 SDi[AEY]08.1996-08.1999
SEATIbiza 1.9 SDi[AGP]08.1999-02.2002
SEATIbiza 1.9 SDi[AQM]08.1999-02.2002
SEATIbiza 1.9 TD[AAZ]03.1993-08.1996
SEATInca 1.7 D[AHB]09.1996-
SEATInca 1.9 D[1Y]11.1995-
SEATInca 1.9 SDi[AEY]11.1995-
SEATInca 1.9 SDi[AYQ]09.2000-
SEATLeon 1.9 SDi[AQM]11.1999-
SEATLeon 1.9 TDi[ALH]11.1999-AT
SEATToledo 1.9 D[1Y]05.1991-03.1999
SEATToledo 1.9 D[1Y]12.1995-03.1999
SEATToledo 1.9 SDi[AQM]11.1999-06.2004
SEATToledo 1.9 TD[AAZ]05.1991-03.1999
SEATToledo 1.9 TDi[AGR]04.1999-05.2006AT
SEATToledo 1.9 TDi[AHF]04.1999-05.2006AT
SEATToledo 1.9 TDi[ALH]04.1999-05.2006AT
SEATToledo 2.3 V5[AGZ]04.1999-05.2001AT
SEATToledo 2.3 V5[AQN]05.2001-05.2006AT
SKODAOctavia 1.9 SDi[AGP]06.1997-
SKODAOctavia 1.9 SDi[AGP]07.1998-12.2003
SKODAOctavia 1.9 SDi[AQM]06.1997-
SKODAOctavia 1.9 SDi[AQM]07.1998-12.2003
SKODAOctavia 1.9 TDi[AGR]09.1996-AT
SKODAOctavia 1.9 TDi[AGR]07.1998-AT
SKODAOctavia 1.9 TDi[AHF]08.1997-09.2004AT
SKODAOctavia 1.9 TDi[AHF]07.1998-AT
SKODAOctavia 1.9 TDi[ALH]09.1996-AT
SKODAOctavia 1.9 TDi[ALH]07.1998-AT
SKODAOctavia 1.9 TDi[ASV]07.1998-AT
SKODAOctavia 1.9 TDi[ASV]08.2000-09.2004
SKODAOctavia 1.9 TDi 4x4[AGR]11.1999-09.2000AT
VWBora 1.9 SDi[AGP]10.1998-05.2005AT
VWBora 1.9 SDi[AQM]10.1998-05.2005
VWBora 1.9 TDi[AGR]10.1998-06.2001
VWBora 1.9 TDi[AHF]10.1998-06.2001AT
VWBora 1.9 TDi[AHF]05.1999-06.2001AT
VWBora 1.9 TDi[ALH]10.1998-06.2001AT
VWBora 1.9 TDi[ASV]05.1999-06.2001AT
VWBora 1.9 TDi 4-Motion[AGR]02.1999-06.2001AT
VWBora 1.9 TDi 4-Motion[ALH]02.1999-06.2001AT
VWBora 2.3 V5[AGZ]10.1998-10.2000AT
VWBora 2.3 V5[AGZ]05.1999-10.2000AT
VWBora 2.3 V5 4-Motion[AGZ]12.1998-10.2000AT
VWBora 2.3 V5 4-Motion[AGZ]05.1999-10.2000AT
VWCaddy 1.7 SDi[AHB]07.1996-09.2000
VWCaddy 1.9 D[1Y]11.1995-01.2004
VWCaddy 1.9 D[1Y]11.1995-
VWCaddy 1.9 SDi[AEY]11.1995-01.2004
VWCaddy 1.9 SDi[AYQ]11.1995-01.2004
VWCorrado 2.9 VR6[ABV]08.1991-12.1995AT
VWGolf III 1.9 D[1Y]11.1991-08.1997
VWGolf III 1.9 D[1Y]07.1993-04.1999
VWGolf III 1.9 SDi[AEY]07.1995-08.1997
VWGolf III 1.9 SDi[AEY]07.1995-04.1999
VWGolf III 1.9 TD[AAZ]11.1991-08.1997
VWGolf III 1.9 TD[AAZ]07.1993-04.1999
VWGolf III 1.9 TDi[1Z]09.1993-08.1997AT
VWGolf III 1.9 TDi[1Z]03.1994-04.1999AT
VWGolf III 1.9 TDi[1Z]08.1995-05.1998AT
VWGolf III 1.9 TDi[AFN]04.1996-08.1997AT
VWGolf III 1.9 TDi[AFN]04.1996-04.1999AT
VWGolf III 1.9 TDi[AFN]07.1996-05.1998AT
VWGolf III 1.9 TDi[AHU]09.1993-08.1997AT
VWGolf III 1.9 TDi[AHU]03.1994-04.1999AT
VWGolf III 1.9 TDi[AHU]08.1995-05.1998AT
VWGolf III 1.9 TDi[ALE]08.1995-05.1998AT
VWGolf III 1.9 TDi[ALE]05.1997-12.1997AT
VWGolf III 2.8 VR6[AAA]01.1992-08.1997AT
VWGolf IV 1.6[AWB]08.2003-06.2005
VWGolf IV 1.9 SDi[AGP]08.1997-06.2005
VWGolf IV 1.9 SDi[AGP]05.1999-
VWGolf IV 1.9 SDi[AQM]08.1997-06.2005
VWGolf IV 1.9 SDi[AQM]05.1999-
VWGolf IV 1.9 TDi[AGR]10.1997-05.2004AT
VWGolf IV 1.9 TDi[AHF]08.1997-05.2004AT
VWGolf IV 1.9 TDi[AHF]05.1999-06.2001AT
VWGolf IV 1.9 TDi[AHU]04.1998-06.2000AT
VWGolf IV 1.9 TDi[ALE]04.1998-12.2001AT
VWGolf IV 1.9 TDi[ALH]10.1997-05.2004AT
VWGolf IV 1.9 TDi[ALH]05.1999-05.2005AT
VWGolf IV 1.9 TDi[ALH]05.1999-05.2006AT
VWGolf IV 1.9 TDi[ASV]08.1997-05.2004
VWGolf IV 1.9 TDi 4-Motion[AGR]07.1998-04.2002AT
VWGolf IV 1.9 TDi 4-Motion[AGR]05.1999-05.2005AT
VWGolf IV 1.9 TDi 4-Motion[ALH]07.1998-AT
VWGolf IV 2.3 V5[AGZ]08.1997-10.2000AT
VWGolf IV 2.3 V5[AGZ]05.1999-AT
VWGolf IV 2.3 V5 4-Motion[AGZ]12.1998-10.2000AT
VWGolf IV 2.3 V5 4-Motion[AGZ]05.1999-AT
VWNew Beetle 1.9 TDi[ALH]01.1998-06.2004AT
VWPassat 1.9 D[1Y]05.1989-10.1993AT
VWPassat 1.9 TD[AAZ]03.1991-08.1996AT
VWPassat 1.9 TD[AAZ]03.1991-05.1997AT
VWPassat 1.9 TDi[1Z]10.1993-08.1996AT
VWPassat 1.9 TDi[1Z]10.1993-05.1997AT
VWPassat 1.9 TDi[AFN]03.1996-03.1997AT
VWPassat 1.9 TDi[AFN]03.1996-05.1997AT
VWPassat 2.8 VR6[AAA]06.1991-08.1996AT
VWPassat 2.8 VR6[AAA]06.1991-05.1997AT
VWPassat 2.8 VR6 GLX[AAA]01.1995-01.1995
VWPolo 1.7 SDi[AKW]07.1997-09.2001
VWPolo 1.7 SDi[AKW]08.1997-09.2001
VWPolo 1.9 D06.1996-09.2001
VWPolo 1.9 D[1Y]01.1996-10.1996
VWPolo 1.9 SDi[1Y]12.1995-08.1999
VWPolo 1.9 SDi[AEY]12.1995-08.1999
VWPolo 1.9 SDi[AEY]06.1997-09.2001
VWPolo 1.9 SDi[AGP]08.1999-09.2001
VWPolo 1.9 SDi[AQM]08.1999-09.2001
VWSharan 1.9 TDi[AFN]09.1996-04.2000
VWSharan 2.8 VR6[AAA]09.1995-04.2000AT
VWSharan 2.8 VR6[AMY]09.1995-04.2000
VWSharan 2.8 VR6 Syncro[AAA]11.1996-04.2000AT
VWSharan 2.8 VR6 Syncro[AMY]11.1996-04.2000
VWTransporter 2.5 TD[AJT]05.1998-04.2003AT
VWTransporter 2.5 TDi[ACV]09.1995-04.2003AT
VWTransporter 2.5 TDi[ACV]09.1995-03.2004AT
VWTransporter 2.5 TDi[AJT]05.1998-03.2004AT
VWTransporter 2.5 TDi[AJT]12.1998-04.2003AT
VWTransporter 2.5 TDi[AUF]09.1995-03.2004AT
VWTransporter 2.5 TDi[AUF]09.1995-04.2003AT
VWTransporter 2.5 TDi Syncro[ACV]09.1995-04.2003AT
VWTransporter 2.5 TDi Syncro[ACV]01.1996-03.2004AT
VWTransporter 2.5 TDi Syncro[ACV]05.1998-04.2003AT
VWTransporter 2.5 TDi Syncro[AXL]05.1998-AT
VWTransporter 2.8[AES]05.1996-05.2000
VWVento 1.9 D[1Y]11.1991-09.1998
VWVento 1.9 SDi[AEY]04.1997-09.1998
VWVento 1.9 TD[AAZ]11.1991-09.1998
VWVento 1.9 TDi[1Z]09.1993-09.1998AT
VWVento 1.9 TDi[AFN]04.1996-09.1998
VWVento 1.9 TDi[AHU]09.1993-09.1998AT
VWVento 1.9 TDi[ALE]09.1993-09.1998AT
VWVento 2.8 VR6[AAA]01.1992-09.1998AT
