S9228


Code: S9228

Category: Starters

Manufacturer: Iskra / Letrika

Supplier: As-pl

: 11.131.464

STANDARD LINE

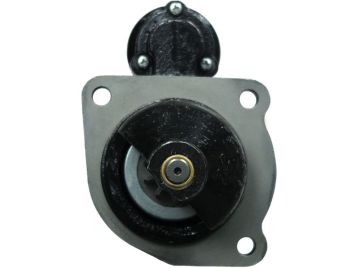

Brand new AS-PL Starter motor



Size a: 89.00 mm

Size b: 27.00 mm

C.1: 11.00 mm

C.2: 11.00 mm

C.3: 11.00 mm

L.1: 321.00 mm

No./teeth: 10

No./mount. holes: 3

No./mount. holes with thread: 0

O.1: 89.00 mm

O.2: 128.00 mm

O.3: 89.00 mm

Power: 4.20 kW

Rotation: CW

Voltage: 12 v



Reference number

CodeManufacturer
CGB-43020Ainde
CGB-54306Ainde
S9228 As-pl
UD11161SAs-pl
114050Cargo
CST21114GSCasco
84151331RCase
8256Cevam
7700068173Claas
DRS0365DELCO
4897223Eea
STR79185Electrolog
STR79186Electrolog
STR7956Electrolog
25-4306Elstock
11.131.464 Iskra / Letrika
11.131.520 Iskra / Letrika
11.131.550 Iskra / Letrika
11.131.706 Iskra / Letrika
11.131.824Iskra / Letrika
11.131.972Iskra / Letrika
11.132.073 Iskra / Letrika
11.132.283 Iskra / Letrika
AZF4122 Iskra / Letrika
AZF4135 Iskra / Letrika
AZF4143 Iskra / Letrika
AZF4184 Iskra / Letrika
AZF4291 Iskra / Letrika
AZF4346 Iskra / Letrika
IS0999 Iskra / Letrika
500389864 Iveco
504163666Iveco
5801394270Iveco
84151331Iveco
87524725Iveco
87653219Iveco
STB4050Krauf
254382Kuhner
254382BKuhner
254382MKuhner
3542184M92Landini
3546390M91Landini
3670185M92Landini
3691576M91Landini
19793Lester
LRS02633Lucas
LRS2633Lucas
72735766Mahle
MS138 Mahle
3670185M92Massey Ferguson
9643382M1Massey Ferguson
47715263New Holland
82032859New Holland
87318735New Holland
87583926New Holland
27432RPerkins
2873A104 Perkins
88214814Powermax
500.549.103.010Psh
500.549.103.090Psh
500.549.103.098Psh
500.549.103.311Psh
20419411OEReal
6005007548Renault
6005700082Renault
7700067173Renault
7701028780Renault
7701030289Renault
182-30311Robert's
6021114.1Sando
S12ML0663A2Sidat
MAV231140SIOM
36210Sparex
47137538Sperry New Holland
19793NWai / Transpo
91-23-6568Wilson
MAHMS138Woodauto
STR60710Woodauto


Usage

BrandModelTypeYearNote
CASE105 A 4.5[FPT]
CASE115 A 4.5[NEF]
CASE121E 3.2[F5CE9454G]
CASE21E 3.2[F5CE9454C]
CASE221E 3.2[F5CE9454E]
CASE321E 3.2[F5CE5454B]
CASE95 A 4.5[FPT.NEF]
CASEJXU 115 4.5[NEFF4C]01.2008-
CASEJXU 75 4.5[NEFF4C]01.2008-
CASEMaxxum 100 4.5[NEF]01.2007-
CASEMaxxum 110 4.5[NEF]01.2007-01.2012
CASEMaxxum 110 4.5[NEF]02.2012-
CASEMaxxum 110 CVX 4.5[NEF]07.2013-
CASEMaxxum 115 6.7[NEF]01.2007-03.2012
CASEMaxxum 120 4.5[NEF]01.2007-12.2012
CASEMaxxum 120 4.5[NEF]02.2012-
CASEMaxxum 120 CVX 4.5[NEF]07.2013-
CASEMaxxum 125 6.7[NEF]01.2007-01.2012
CASEMaxxum 125 6.7[NEF]02.2012-
CASEMaxxum 130 4.5[NEF]01.2007-01.2012
CASEMaxxum 130 4.5[NEF]02.2012-
CASEMaxxum 130 CVX 4.5[NEF]07.2013-
CASEMaxxum 135 6.7[NEF.TAA]05.2008-
CASEMaxxum 135 6.7[NEF]01.2007-
CASEMaxxum 140 6.7[NEF]01.2007-01.2012
CASEMaxxum 140 6.7[NEF]02.2012-
CASEMaxxum 150 6.7[NEF.TAA]05.2008-
CASEMaxxum 180 6.7[NEF.TAA]05.2008-
CASEMxu 10007.2003-
CASEMxu 11007.2003-
CASEMxu 12507.2003-
CASEMxu 13007.2005-
CASEMxu 13507.2003-
CASEPuma 125 6.7[NEF]11.2009-
CASEPuma 130 6.7[NEF]11.2010-
CASEPuma 130 CVT 6.7[NEF]11.2010-
CASEPuma 130 CVX 6.7[NEF]12.2010-
CASEPuma 140 6.7[NEF]11.2009-
CASEPuma 140 CVT 6.7[NEF]12.2010-
CASEPuma 145 6.7[NEF]01.2011-
CASEPuma 145 CVX 6.7[NEF]12.2010-
CASEPuma 155 6.7[NEF]11.2008-
CASEPuma 160 6.7[NEF]01.2011-
CASEPuma 160 CVT 6.7[NEF]12.2010-
CASEPuma 160 CVX 6.7[NEF]12.2010-
CASEPuma 165 6.7[NEF]01.2007-
CASEPuma 165 CVX 6.7[NEF]01.2007-
CASEPuma 170 6.7[NEF]01.2011-
CASEPuma 170 CVX 6.7[NEF]12.2010-
CASEPuma 180 6.7[NEF]01.2007-
CASEPuma 180 CVX 6.7[NEF]12.2010-
CASEPuma 185 6.7[NEF]01.2011-
CASEPuma 185 CVX 6.7[NEF]12.2010-
CASEPuma 195 6.7[NEF]01.2000-
CASEPuma 195 CVX 6.7[NEF]01.2010-
CASEPuma 200 6.7[NEF]12.2010-
CASEPuma 200 CVX 6.7[NEF]12.2010-
CASEPuma 205 6.7[NEF]
CASEPuma 210 6.7[NEF]01.2007-
CASEPuma 210 CVX 6.7[NEF]01.2010-
CASEPuma 215 6.7[NEF]12.2010-
CASEPuma 215 CVX 6.7[NEF]12.2010-
CASEPuma 225 CVX 6.7[NEF]01.2009-
CASEPuma 230 CVX 6.7[NEF]12.2010-
CASEPuma EP 125 6.7[NEF]
CASEPuma EP 130 CVX 6.7[NEF]
CASEPuma EP 140 6.7[NEF]
CASEPuma EP 145 CVX 6.7[NEF]
CASEPuma EP 155 6.7[NEF]
CASEPuma EP 160 6.7[NEF]
CASEPuma EP 160 CVX 6.7[NEF]
CASEPuma EP 170 6.7[NEF]
CASEPuma EP 170 CVX 6.7[NEF]
CASEPuma EP 185 6.7[NEF]
CASEPuma EP 185 CVX 6.7[NEF]
CASEPuma EP 200 6.7[NEF]
CASEPuma EP 200 CVX 6.7[NEF]
CASEPuma EP 215 6.7[NEF]
CASEPuma EP 215 CVX 6.7[NEF]
CASEPuma EP 230 CVX 6.7[NEF]
CASEQuantum 105 F 4.5[NEF]
CASEQuantum 105 N 4.5[NEF]
CASEQuantum 105 V 4.5[NEF]
CASEQuantum 95 F 4.5[NEF]
CASEQuantum 95 N 4.5[NEF]
CASEQuantum 95 V 4.5[NEF]
CASESR200 3.2[432T/M3]
CASESR250 3.2[432T/M3]
CASET 7030 6.7[NEF]
CASET 7040 6.7[NEF]
CASET 7050 6.7[NEF]
CASET 7060 6.7[NEF]
CASET 7070 6.7[NEF]
De PietriTR100DTN 4.5[NEF]
De PietriTR100DTS 4.5[NEF]
DoosanDT70 4.5[NEF]
LANDINI125 6.7[FPT.NEF]
LANDINI135 6.7[FPT.NEF]
LANDINI145 6.7[FPT.NEF]
LANDINI165 6.7[FPT.NEF]
LANDINI180 6.7[FPT.NEF]
LANDINI185 6.7[FPT.NEF]
LANDINI6-120C 4.5[NEF.CR.TAA]01.2013-
LANDINI6-130C 4.5[NEF.CR.TAA]01.2013-
LANDINI6-145 4.5[NEF.CR.TAA]01.2012-
LANDINI6-160 4.5[NEF.CR.TAA]01.2012-
LANDINI6-175 4.5[NEF.CR.TAA]01.2012-
LANDINI7-145 6.7[FPT.NEF]
LANDINI7-165 6.7[FPT.NEF]
LANDINI7-175 6.7[FPT.NEF]01.2013-
LANDINI7-180 6.7[FPT.NEF]
LANDINI7-190 6.7[FPT.NEF]
LANDINI7-190 6.7[FPT.NEF]01.2011-
LANDINI7-195 6.7[FPT.NEF]
LANDINI7-205 6.7[FPT.NEF]
LANDINI7-210 6.7[FPT.NEF]
LANDINI7-215 6.7[FPT.NEF]01.2013-
LANDINI7-220 6.7[FPT.NEF]
LANDINI7-230 6.7[FPT.NEF]
LANDINI7-235 6.7[FPT.NEF]
LANDINIPowermaster 190 6.7[6728/6/24]
LANDINIPowermaster 210 6.7[6728/6/24]
LANDINIPowermaster 230 6.7[6728/6/24]
LANDINIPowermax 145[6728/6]
LANDINIPowermax 168[6728/6]
MCCORMICKMC 120 Power 6 6.7[NEF]
MCCORMICKMC 135 Power 6 6.7[NEF]
MCCORMICKMTX 120 6.7[FPT.NEF]
MCCORMICKMTX 135 6.7[FPT.NEF]
MCCORMICKMTX 150 6.7[FPT.NEF]
MCCORMICKTTX 190 6.7[FPT.NEF]
MCCORMICKTTX 210 6.7[FPT.NEF]
MCCORMICKTTX 230 6.7[FPT.NEF]
MCCORMICKX6.420 4.5[FPT.NEF]01.2013-
MCCORMICKX6.430VT-Drive 4.5[FPT.NEF]01.2014-
MCCORMICKX7.440 4.5[FPT.NEF]01.2013-
MCCORMICKX7.440VT-Drive 4.5[FPT.NEF]01.2014-
MCCORMICKX7.450 4.5[FPT.NEF]01.2013-
MCCORMICKX7.460 4.5[FPT.NEF]01.2013-
MCCORMICKX7.660 6.7[FPT.NEF]01.2013-
MCCORMICKX7.670 6.7[FPT.NEF]01.2013-
MCCORMICKX7.680 6.7[FPT.NEF]01.2013-
MCCORMICKX70-40 6.7[FPT.NEF]
MCCORMICKX70-50 6.7[FPT.NEF]
MCCORMICKX70-60 6.7[FPT.NEF]
MCCORMICKX70-70 6.7[FPT.NEF]
MCCORMICKX70-80 6.7[FPT.NEF]
MCCORMICKXTX 145 6.7[FPT.NEF]
MCCORMICKXTX 165 6.7[FPT.NEF]
MCCORMICKXTX 185 6.7[FPT.NEF]
MCCORMICKXTX 200 6.7[FPT.NEF]
MCCORMICKXTX 215 6.7[FPT.NEF]
MOSAGE 225 FMSX EAS 6.7[NEF]
NEW HOLLANDCrawler TK4050 3.2[FPT.NEF]01.2009-
NEW HOLLANDT6020 6.7[NEF]01.2007-
NEW HOLLANDT6030 Delta 6.7[NEF]
NEW HOLLANDT6030 Plus 6.7[NEF]
NEW HOLLANDT6040 6.7[NEF]01.2007-
NEW HOLLANDT6050 Delta 6.7[NEF]
NEW HOLLANDT6050 Plus 6.7[NEF]
NEW HOLLANDT6060 6.7[NEF]01.2007-
NEW HOLLANDT6070 6.7[NEF]
NEW HOLLANDT6070 Plus 6.7[NEF]
NEW HOLLANDT6080 6.7[NEF]
NEW HOLLANDT6090 6.7[NEF]
NEW HOLLANDT7.170 6.7[FPT.NEF]01.2011-
NEW HOLLANDT7.170 6.7[NEF]12.2010-
NEW HOLLANDT7.185 6.7[FPT.NEF]01.2011-
NEW HOLLANDT7.185 6.7[NEF]12.2010-
NEW HOLLANDT7.200 6.7[FPT.NEF]01.2011-
NEW HOLLANDT7.200 6.7[NEF]12.2010-
NEW HOLLANDT7.210 6.7[FPT.NEF]01.2011-
NEW HOLLANDT7.210 6.7[NEF]12.2010-
NEW HOLLANDT7.220 6.7[FPT.NEF]12.2010-
NEW HOLLANDT7.220 6.7[NEF]12.2010-
NEW HOLLANDT7.230 6.7[FPT.NEF]12.2010-
NEW HOLLANDT7.235 6.7[NEF]12.2010-
NEW HOLLANDT7.240 6.7[NEF]
NEW HOLLANDT7.245 6.7[NEF]
NEW HOLLANDT7.250 6.7[FPT.NEF]12.2010-
NEW HOLLANDT7.255 6.7[NEF]12.2010-
NEW HOLLANDT7.260 6.7[FPT.NEF]12.2010-
NEW HOLLANDT7.260 6.7[NEF]12.2010-
NEW HOLLANDT7.270 6.7[NEF]12.2010-
NEW HOLLANDT7010 6.7[NEF]
NEW HOLLANDT7020 6.7[NEF]
NEW HOLLANDT7030 6.7[NEF]01.2007-
NEW HOLLANDT7040 6.7[NEF]01.2007-
NEW HOLLANDT7050 6.7[NEF]06.2009-
NEW HOLLANDT7060 6.7[NEF]01.2007-
NEW HOLLANDT7070 6.7[NEF]06.2009-
NEW HOLLANDTC5070 6.7[NEF]09.2007-
NEW HOLLANDTC57 6.7[NEF]09.2007-
NEW HOLLANDTM7010[NEF.TAA]02.2008-
NEW HOLLANDTM7020[NEF.TAA]02.2008-
NEW HOLLANDTM7030[NEF.TAA]02.2008-
NEW HOLLANDTM7040[NEF.TAA]02.2008-
NEW HOLLANDTS100 4.5[NEF]01.1998-
NEW HOLLANDTS110 4.5[NEF]01.1998-
NEW HOLLANDTS6.100 4.5[FPT.NEF]01.2012-
NEW HOLLANDTS6.120 4.5[FPT.NEF]01.2010-
NEW HOLLANDTS6.125
NEW HOLLANDTS6.125 6.7[FPT.NEF]01.2010-
NEW HOLLANDTS6.140 6.7[FPT.NEF]01.2010-
NEW HOLLANDTS7020
NEW HOLLANDTS90[NEF]01.1998-
NEW HOLLANDTT60A 2.9[NEF]01.2007-
STEYR4110 Clasic 4.5[FPT.NEF]
STEYR4110 ET 4.5[FPT.NEF]
STEYR4110 Profi 4.5[FPT.NEF]
STEYR4110 Profi CVT 4.5[FPT.NEF]
STEYR4120 Profi 4.5[FPT.NEF]
STEYR4120 Profi CVT 4.5[FPT.NEF]
STEYR4130 Profi 4.5[FPT.NEF]
STEYR4130 Profi CVT 4.5[FPT.NEF]
STEYR6125 Clasic 6.7[FPT.NEF]
STEYR6125 Profi 6.7[FPT.NEF]
STEYR6130 CVT 6.7[FPT]
STEYR6140 Clasic 6.7[FPT.NEF]
STEYR6140 Profi 6.7[FPT.NEF]
STEYR6145 CVT 6.7[FPT]
STEYR6160 CVT 6.7[FPT]
STEYR6170 CVT 6.7[FPT]
STEYR6185 CVT 6.7[FPT]
STEYR6205 CVT 6.7[FPT]
STEYR6230 CVT 6.7[FPT]
