  1. Starters
    2. >
  2. S9286S



S9286S


Code: S9286S
Category: Starters
Manufacturer: Briggs Stratton
Supplier: As-pl
STANDARD LINE

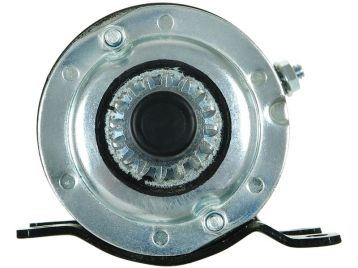

Brand new AS-PL Starter motor


Size b: 33.50 mm
C.1: 8.00 mm
C.2: 8.00 mm
C.3: 8.00 mm
C.4: 8.00 mm
L.1: 172.00 mm
No./teeth: 16
No./mount. holes: 4
No./mount. holes with thread: 0
O.1: 58.00 mm
O.2: 88.00 mm
O.3: 58.00 mm
O.4: 88.00 mm
Power: 0.48 kW
Rotation: ACW
Voltage: 12 v


Reference number

CodeManufacturer
STRF3363EFFE
10440833Alanko
STC0006Arrowhead
UD03132SAs-pl
UD13663SAs-pl
112312Cargo
AM30931John Deere
STZ0212Krauf
STZ5749Krauf
5749Lester
400.099.160.190Psh
32468BTecumseh
33202Tecumseh
33605Tecumseh
33606Tecumseh
35763Tecumseh
35763ATecumseh
36463Tecumseh
36680Tecumseh
107415Wai / Transpo
2-2194Wai / Transpo
5749NWai / Transpo
STR88301Woodauto
WOOSTR88301Woodauto


Usage

BrandModelTypeYearNote
TecumsehEngine[HM100]
TecumsehEngine[HM70]
TecumsehEngine[OVM120]
TecumsehEngine[OVXL120]
TecumsehEngine[TVM170]
TecumsehEngine[TVM220]
TecumsehEngine[TVXL170]
TecumsehEngine[TVXL220]
