S9577S
Code: S9577S
Category: Starters
Manufacturer: Johnson Electric
Supplier: As-pl
STANDARD LINE

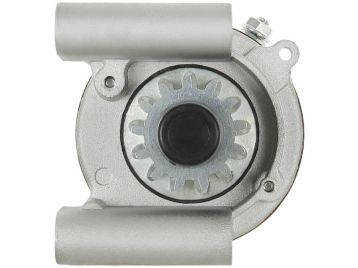

Brand new AS-PL Starter motor
Size b: 17.00 mm
C.1: 9.50 mm
C.2: 9.50 mm
L.1: 185.00 mm
No./teeth: 13
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 67.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10440804 | Alanko | |
| SAB0037 | Arrowhead | |
| UD13667S | As-pl | |
| F032112244 | Bosch | |
| 112244 | Cargo | |
| 20607113 | Dixie | |
| AM122435 | John Deere | |
| 1209802 | Kohler | |
| 1209804 | Kohler | |
| 1209808 | Kohler | |
| 1209813 | Kohler | |
| 1209815 | Kohler | |
| 1209815S | Kohler | |
| 1209820 | Kohler | |
| 1209822 | Kohler | |
| 1209822S | Kohler | |
| STZ6669 | Krauf | |
| 5770 | Lester | |
| 332240 | Logistik | |
| K0H1209822 | New Holland | |
| K0H1209822S | New Holland | |
| 106-10140 | Robert's | |
| 106-10140NOE | Robert's | |
| STR1049 | Unipoint | |
| 5225040M030SM | United Technologies | |
| 5225040MO30SM | United Technologies | |
| 5278340M030SM | United Technologies | |
| 5278340MO30SM | United Technologies | |
| 5666940 | United Technologies | |
| 5666940M030SM | United Technologies | |
| 5666940MO30SM | United Technologies | |
| 6560040 | United Technologies | |
| SM56669 | United Technologies | |
| 2-2241 | Wai / Transpo | |
| 2-2241-1 | Wai / Transpo | |
| 2-2241-UT | Wai / Transpo | |
| 5770N | Wai / Transpo | |
| 5770N-OE | Wai / Transpo | |
| 71-09-5770 | Wilson | |
| 91-09-1044 | Wilson | |
| STR88212 | Woodauto | |
| WOOSTR88212 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| Cub Cadet | 1515 | [15H.P.] | 01.2002-12.2002 | |
| Cub Cadet | 1517 | [17H.P.] | 01.2002-12.2002 | |
| Cub Cadet | LT1018LE | [18H.P.] | 01.2004-12.2004 | |
| Cub Cadet | Z42 | [15H.P.] | 01.1997-12.1999 | |
| JOHN DEERE | 7G18 | [18H.P.] | 01.2009-12.2011 | |
| JOHN DEERE | 7G18 | [CV943T-15H.P.] | 01.2005-12.2009 | |
| JOHN DEERE | L110 | [17.5H.P.] | 01.2003-12.2005 | |
| JOHN DEERE | LT133 | [13H.P.] | ||
| JOHN DEERE | LT150 | [15H.P.] | ||
| JOHN DEERE | LT155 | [15H.P.] | ||
| JOHN DEERE | LT160 | [16H.P.] | ||
| JOHN DEERE | LTR155 | [15H.P.] | ||
| JOHN DEERE | Sabre 17.542HS | 01.2002-12.2003 | ||
| JOHN DEERE | SST15 | [CVS15S-15H.P.] | 01.2001-12.2004 | |
| JOHN DEERE | STX46 | [15H.P.] | 01.1995-12.2005 | |
| NEW HOLLAND | MY16 | [16H.P.] | 01.2004-12.2014 | |
| NEW HOLLAND | MZ17H | [18H.P.] | ||
| Scotts | S2048 | [20H.P.] | 01.1999-12.2009 | |
| Toro | 18-52ZX TimeCutter ZX Riding Mower | [18H.P.] | 01.2003-12.2004 | |
| Toro | 265-6 | [15H.P.] | 01.1998-12.2000 | |
| Toro | 265-6 Yard Tractor | [15H.P.] | 01.1996-12.1997 | |
| Toro | 265-H | [15H.P.] | 01.1996-12.2002 | |
| Toro | 266-H | [16H.P.] | 01.2001-12.2002 | |
| Toro | 266-HE | [16H.P.] | 01.2001-12.2002 | |
| Toro | 410 Garden Tractor | [460cc] | 01.2005-12.2005 | |
| Toro | 416XT Garden Tractor | [16H.P.] | 01.2003-12.2004 | |
| Toro | MZ17H | [18H.P.] | 01.2006-12.2006 | |
| Toro | TimeCutter ZX440 Riding Mower | [490cc] | 01.2006-12.2008 | |
| Toro | Wheelhorse 265-6 | [CV15S-PS41550-15H.P.] | 01.1998-12.2008 | |
| Toro | Wheelhorse 265-H | [15H.P.] | 01.1998-12.2008 | |
| Toro | Z17-44 TimeCutter Z Riding Mower | [17H.P.] | 01.2001-12.2002 | |
| Toro | Z17-52 TimeCutter Z Riding Mower | [17H.P.] | 01.2001-12.2002 |
