S9594S


Code: S9594S

Category: Starters

Manufacturer: Johnson Electric

Supplier: As-pl

STANDARD LINE

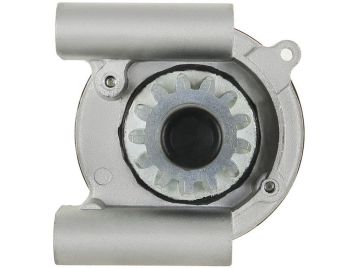

Brand new AS-PL Starter motor



Size b: 17.00 mm

C.1: 9.50 mm

C.2: 9.50 mm

L.1: 190.00 mm

No./teeth: 13

No./mount. holes: 0

No./mount. holes with thread: 0

O.1: 68.00 mm

Rotation: ACW

Voltage: 12 v



Reference number

CodeManufacturer
UD13668SAs-pl
5667040United Technologies
2-2242Wai / Transpo


Usage

BrandModelTypeYearNote
Cub Cadet1315[12.5H.P.]01.1989-12.1991
Cub Cadet1320[12.5H.P.]01.1989-12.1991
Cub Cadet1325[12.5H.P.]01.1992-12.1993
Cub Cadet133001.1992-12.1993
Cub Cadet1340[12.5H.P.]01.1990-12.1991
Cub Cadet140501.1990-12.1991
Cub Cadet1405[14H.P.]01.1990-12.1991
Cub Cadet141501.1988-12.1989
Cub Cadet142001.1988-12.1991
Cub Cadet171501.1988-12.1990
Cub Cadet172001.1988-12.1991
KohlerC12-501.1998-12.2008
Toro264-6[14H.P.]01.1994-12.1996
Toro264-H[14H.P.]01.1994-12.1996
Toro312-801.1998-12.2008
Toro312-8[12.5H.P.]01.1998-12.2001
Toro314-801.1998-12.2008
Toro314-8[14H.P.]01.1999-12.2001
Toro314-8-T01.1998-12.2008
Toro314-H01.1995-12.2005
Toro315-8[15H.P.]01.2002-12.2004
ToroGT01.2005-12.2007
ToroProLine 185[CV14S-1429]01.1991-12.1992
