S9633S
Code: S9633S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

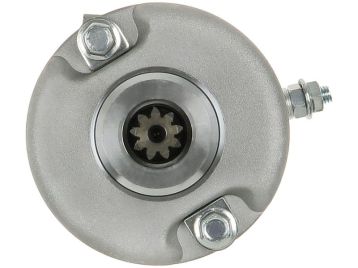

Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 6.50 mm
C.2: 7.00 mm
L.1: 162.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 52.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19052S | As-pl | |
| GM23003 | Gauss | |
| 31200-KBB-901 | Honda | |
| 31200-KW1-901 | Honda | |
| 31200-KW8-901 | Honda | |
| 18850 | Lester | |
| 464240 | Tucker Rocky | |
| 18850N | Wai / Transpo |
Usage
| Brand | Model | Type | Year | Note |
| HONDA | CRF 230 F | [223cc] | 01.2006- | |
| HONDA | XLR 125 | [124cc] | 01.1996-12.2003 | |
| HONDA | XLR 125 R | [124cc] | 01.1998-12.1999 |
