S9656S
Code: S9656S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

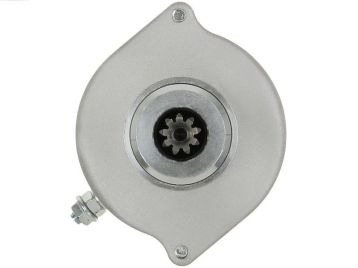

Brand new AS-PL Starter motor
Size b: 40.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 178.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 45.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| SMU0271 | Arrowhead | |||||||
| UD19120S | As-pl | |||||||
| RS41237 | DELCO | |||||||
| 242-06158 | Dixie | |||||||
| 410-54040 | J&n | |||||||
| PO2-0006N | Just Parts | |||||||
| STU8648 | Krauf | |||||||
| 18648 | Lester | |||||||
| 4010417 | Polaris | |||||||
| ||||||||
| 4011584 | Polaris | |||||||
| ||||||||
| 4012032 | Polaris | |||||||
| ||||||||
| 400.529.092.190 | Psh | |||||||
| 106-10422 | Robert's | |||||||
| 18648N | Wai / Transpo | |||||||
| 71-26-18648 | Wilson | |||||||
| STR75443 | Woodauto | |||||||
| WOOSTR75443 | Woodauto | |||||||
Usage
| Brand | Model | Type | Year | Note |
| POLARIS | Frontier | [784cc] | 01.2003-12.2004 | |
| POLARIS | Frontier | [784cc] | 01.2003-12.2005 | |
| POLARIS | Ranger 700 4x4 | [683cc] | 01.2005-12.2009 | |
| POLARIS | Ranger 700 6x6 | [683cc] | 01.2006-12.2009 | |
| POLARIS | Ranger 800 4x4 | [760cc] | 01.2010-12.2011 | |
| POLARIS | Ranger 800 4x4 | [760cc] | 01.2011-12.2012 | |
| POLARIS | Ranger 800 6x6 | [760cc] | 01.2010-12.2012 | |
| POLARIS | Ranger 800 XP 4x4 | [760cc] | 01.2012-12.2012 | |
| POLARIS | Ranger RZR 4 800 EFI | [760cc] | 01.2010-12.2011 | |
| POLARIS | Ranger RZR 800 EFI | [760cc] | 01.2008-12.2012 | |
| POLARIS | Ranger RZR S 800 EFI | [760cc] | 01.2009-12.2012 | |
| POLARIS | Sportsman 600 | [597cc] | 01.2003-12.2004 | |
| POLARIS | Sportsman 600 | [597cc] | 01.2004-12.2005 | |
| POLARIS | Sportsman 6x6 | [499cc] | 01.2009-12.2009 | |
| POLARIS | Sportsman 700 | [683cc] | 01.2004-12.2006 | |
| POLARIS | Sportsman 700 4x4 | [683cc] | 01.2004-12.2006 | |
| POLARIS | Sportsman 700 EFI | [683cc] | 01.2002-12.2007 | |
| POLARIS | Sportsman 700 EFI 4x4 | [683cc] | 01.2004-12.2006 | |
| POLARIS | Sportsman 800 EFI | [760cc] | 01.2005-12.2009 | |
| POLARIS | Sportsman 800 EFI | [760cc] | 01.2008-12.2009 | |
| POLARIS | Sportsman 800 HO | [760cc] | 01.2008-12.2009 | |
| POLARIS | Sportsman Big Boss 800 EFI 6x6 | [760cc] | 01.2009-12.2010 | |
| POLARIS | Sportsman MV7 | [683cc] | 01.2005-12.2005 | |
| POLARIS | Sportsman X2 700 EFI | [683cc] | 01.2008-12.2008 | |
| POLARIS | Sportsman X2 800 EFI | [760cc] | 01.2007-12.2009 |
