S9659S
Code: S9659S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

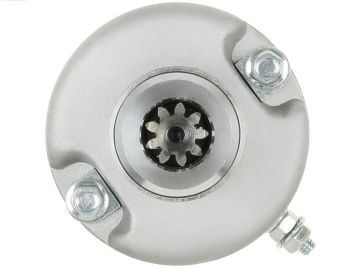

Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 7.00 mm
C.2: 6.50 mm
L.1: 182.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 1
O.1: 35.00 mm
Power: 0.70 kW
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19163S | As-pl | |
| 090550800 | Ducati | |
| 108485 | Farcom | |
| 255813 | Kuhner | |
| 37039 | Lester | |
| 37039N | Wai / Transpo | |
| 4B5-81890-00-00 | Yamaha | |
| 5GJ-81890-00 | Yamaha | |
| 5GJ-81890-00-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | TMAX | [500cc] |
