S9681S
Code: S9681S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

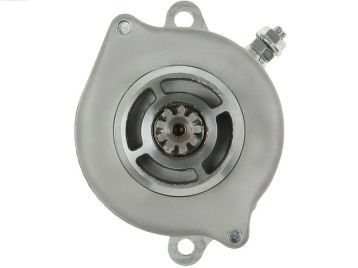

Brand new AS-PL Starter motor
Size b: 46.00 mm
C.1: 7.50 mm
C.2: 6.50 mm
L.1: 168.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 89.00 mm
Power: 0.50 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| 10439167 | Alanko | |||||||
| 439167 | Alanko | |||||||
| ||||||||
| 0825-001 | Arctco | |||||||
| 0825-012 | Arctco | |||||||
| 3545-012 | Arctco | |||||||
| 3545-015 | Arctco | |||||||
| SMU0265 | Arrowhead | |||||||
| SMU0299 | Arrowhead | |||||||
| UD19127S | As-pl | |||||||
| 242-06155 | Dixie | |||||||
| 410-54062 | J&n | |||||||
| 255691 | Kuhner | |||||||
| 18796 | Lester | |||||||
| 26024567 | Lucas | |||||||
| SM-64 | Mitsuba | |||||||
| 31100-44D10 | Suzuki | |||||||
| 31100-44D20 | Suzuki | |||||||
| 31100-44D21 | Suzuki | |||||||
| 18796N | Wai / Transpo | |||||||
| 71-26-18796 | Wilson | |||||||
Usage
| Brand | Model | Type | Year | Note |
| Arctic Cat | 400 2x4 | [376cc] | 01.1998-12.2002 | |
| Arctic Cat | 400 4x4 | [376cc] | 01.1998-12.2002 | |
| Arctic Cat | 500 4x4 | [493cc] | 01.2000-12.2009 | |
| Arctic Cat | 500 4x4 | [493cc] | 01.2001-12.2001 | |
| Arctic Cat | 500 4x4 | [493cc] | 01.2002-12.2007 | |
| Arctic Cat | 500 4x4 | [493cc] | 01.2002-12.2002 | |
| Arctic Cat | 500 4x4 LE | [493cc] | 01.2005-12.2006 | |
| Arctic Cat | 500 4x4 MRP | [493cc] | 01.2003-12.2003 | |
| Arctic Cat | 500 4x4 TBX | [493cc] | 01.2002-12.2006 | |
| Arctic Cat | 500 4x4 TRV | [493cc] | 01.2004-12.2008 | |
| Arctic Cat | 500 TRV | [493cc] | 01.2006-12.2006 | |
| Arctic Cat | 650 H1 4x4 | [641cc] | 01.2005-12.2006 | |
| Arctic Cat | 650 H1 4x4 | [641cc] | 01.2007-12.2007 | |
| Arctic Cat | 650 H1 4x4 SE | [641cc] | 01.2006-12.2006 | |
| Arctic Cat | 650 H1 FIS | [641cc] | 01.2007-12.2007 | |
| Arctic Cat | 650 H1 TBX | [641cc] | 01.2007-12.2007 | |
| Arctic Cat | 650 H1 TRV | [641cc] | 01.2007-12.2007 | |
| Arctic Cat | 650 TRV | [641cc] | 01.2007-12.2007 | |
| Arctic Cat | Prowler 650 | [641cc] | 01.2006-12.2007 | |
| MASSEY FERGUSON | 400 4x4 | [376cc] | 01.2000-12.2002 | |
| MASSEY FERGUSON | 650 4x4 | [641cc] | 01.2005-12.2007 | |
| MASSEY FERGUSON | LT-A500F | [500cc] | 01.2000-12.2001 | |
| SUZUKI | DR650 SE | [644cc] | 01.1998-12.1998 | |
| SUZUKI | DR650 SE | [644cc] | 01.1999-12.1999 | |
| SUZUKI | LT-A500F | [493cc] | 01.2002-12.2007 | |
| SUZUKI | LT-F500F | [493cc] | 01.2003-12.2007 | |
| SUZUKI | LT-F500F | [500cc] | 01.1998-12.2000 | |
| SUZUKI | LT-F500F | [500cc] | 01.2001-12.2002 |
