S9686S
Code: S9686S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

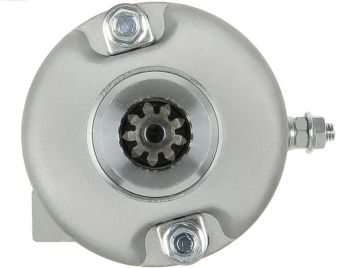

Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 6.50 mm
C.2: 7.00 mm
L.1: 174.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 52.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||||||||
| 10439234 | Alanko | ||||||||||
| 439234 | Alanko | ||||||||||
| |||||||||||
| SMU0282 | Arrowhead | ||||||||||
| UD19142S | As-pl | ||||||||||
| RS41242 | DELCO | ||||||||||
| 18647 | Lester | ||||||||||
| 3088069 | Polaris | ||||||||||
| 18647N | Wai / Transpo | ||||||||||
| 71-26-18647 | Wilson | ||||||||||
Usage
| Brand | Model | Type | Year | Note |
| POLARIS | Outlaw 500 | [499cc] | 01.2006-12.2007 | |
| POLARIS | Predator 500 | [499cc] | 01.2003-12.2007 |
