S9691S
Code: S9691S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

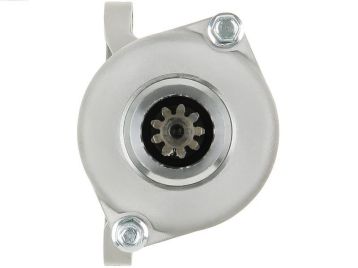

Brand new AS-PL Starter motor
Size b: 42.00 mm
C.1: 6.50 mm
C.2: 7.00 mm
L.1: 157.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 87.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| SMU0516 | Arrowhead | |
| UD19155S | As-pl | |
| SMT152A | Autoteam | |
| CST33152AS | Casco | |
| 10033152AV | Itab Automotive | |
| 410-54148 | J&n | |
| 19499 | Lester | |
| 400.542.092.190 | Psh | |
| 20467251BN | Real | |
| 106-10442 | Robert's | |
| 6033152.0 | Sando | |
| MAV351520A | SIOM | |
| 19499N | Wai / Transpo | |
| STR00806 | WESTERN STAR | |
| 71-26-19499 | Wilson | |
| 1CT-81890-00-0 | Yamaha | |
| 1CT-81890-00-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | Grizzly 450 4WD Hunter YFM450FGH | [449cc] | 01.2011-12.2013 | |
| YAMAHA | Grizzly 450 4WD Hunting YFM450DAE | [449cc] | 01.2014-12.2014 | |
| YAMAHA | Grizzly 450 4WD YFM450FG | [449cc] | 01.2011-12.2014 | |
| YAMAHA | Grizzly 450 4WD YFM450FGI | [449cc] | 01.2011-12.2014 | |
| YAMAHA | Grizzly 450 EPS 4WD Hunter YFM45F0GPH | [449cc] | 01.2011-12.2014 | |
| YAMAHA | Grizzly 450 EPS 4WD YFM450FGP | [449cc] | 01.2011-12.2014 | |
| YAMAHA | Grizzly 450 EPS FWD YFM45FGP | [449cc] | 01.2011-12.2012 | |
| YAMAHA | Grizzly 450 FWD YFM45FG | [449cc] | 01.2011-12.2012 |
