S9707S
Code: S9707S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

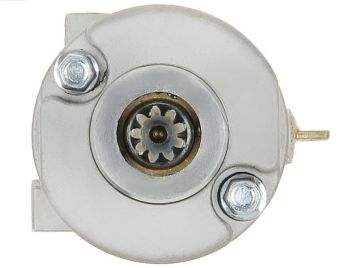

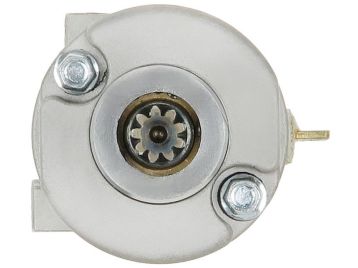

Brand new AS-PL Starter motor
Size b: 40.50 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 169.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 48.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10439073 | Alanko | |
| SMU0446 | Arrowhead | |
| UD19037S | As-pl | |
| 410-54158 | J&n | |
| STU2992 | Krauf | |
| 19639 | Lester | |
| 400.423.092.190 | Psh | |
| 19639N | Wai / Transpo | |
| 71-26-19639 | Wilson | |
| 3C5-81890-00 | Yamaha | |
| 3C5-81890-00-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | Raptor 250 SE YFM25R | [249cc] | 01.2008-12.2012 | |
| YAMAHA | Raptor 250 YFM25R | [249cc] | 01.2008-12.2013 | |
| YAMAHA | XT250 | [249cc] | 01.2008-12.2016 |
