S9709S
Code: S9709S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

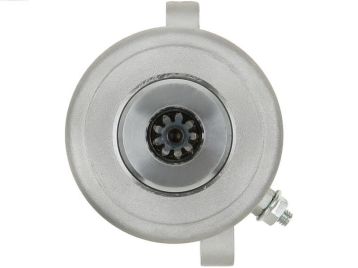

Brand new AS-PL Starter motor
Size b: 35.00 mm
C.1: 6.50 mm
C.2: 6.50 mm
L.1: 157.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 78.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10439201 | Alanko | |
| SMU0052 | Arrowhead | |
| UD19039S | As-pl | |
| RS41190 | DELCO | |
| 108747 | Farcom | |
| 21163-1130 | Kawasaki | |
| 21163-1253 | Kawasaki | |
| 21163-1266 | Kawasaki | |
| STU2774 | Krauf | |
| 18716 | Lester | |
| 400.602.092.190 | Psh | |
| 18716N | Wai / Transpo | |
| 18716N-OE | Wai / Transpo | |
| 2-2443-MT | Wai / Transpo | |
| 71-26-18716 | Wilson | |
| STR75450 | Woodauto | |
| WOOSTR75450 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| KAWASAKI | KLF220 Bayou 220 A1-A4 | [215cc] | 01.1988-12.1991 | |
| KAWASAKI | KLF220 Bayou 220 A5-A8 | [215cc] | 01.1992-12.1995 | |
| KAWASAKI | KLF220 Bayou 220 A9-A15 | [215cc] | 01.1996-12.2002 | |
| KAWASAKI | KLF250 Bayou 250 A1-A9 | [228cc] | 01.2003-12.2009 |
